Anchor - 10
For effective sound decoupling of air ducts

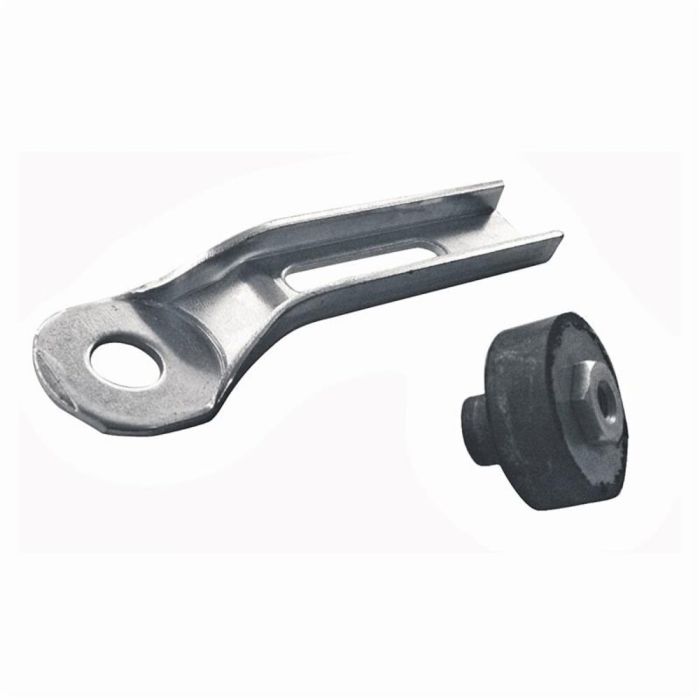

The DB - M10 - galv. ceiling bracket is used for installing air ducts and ventilation pipes. The integrated insulation component ensures a noise- and vibration-damping suspension and improves the sound decoupling of the system. At the same time, the slotted hole allows the ceiling bracket to be adjusted by up to 40 mm. This makes it easy to compensate for installation tolerances and align air ducts precisely.
In ventilation systems, vibrations are generated by fans, units and air ducts. If these are transmitted to the building structure, they can cause disturbing noise. The ceiling bracket helps to reduce these vibrations whilst also providing greater flexibility during installation. This results in a stable mounting solution for applications where effective sound decoupling is required.
Technical Highlights
- Ceiling bracket for the installation of air ducts and ventilation pipes
- Galvanized steel (galv.)
- M10 threaded connection
- Insulation component for noise- and vibration-dampening suspension
- Slotted hole allows the ceiling bracket to be adjusted by up to 40 mm
- Corrosion-protected surface
- Robust design for professional use
Key features
- Reduces the transmission of vibrations to the building structure
- Improves the acoustic properties of ventilation systems
- Easily compensates for installation and positioning tolerances
- Facilitates the precise alignment of air ducts
- Reduces the need for rework
- Provides a durable and secure fixing
Additional features
- Helps to reduce disruptive operating noise
- Simplifies work on the construction site
- Can be quickly readjusted if necessary
- Protects against corrosion thanks to its galv. surface
- Supports long-term, reliable system operation
- Suitable for numerous applications in the ventilation and building services sectors
Installation
- Quick integration into existing suspension systems
- Slotted hole facilitates fine adjustment on site
- Flexible adaptation to structural conditions
- Less effort required when aligning the suspension
- Suitable for new-build, conversion and refurbishment projects
Why is this ceiling bracket suitable for you?
The ceiling bracket DB - M10 - galv. combines vibration damping and flexible installation in a single solution. The damping element reduces the transmission of vibrations to the building structure. The slotted hole facilitates alignment and compensates for tolerances. This allows air ducts to be installed quickly and secured safely and permanently. The ceiling bracket is suitable for ventilation and building services projects where reliable sound decoupling and stable suspension are required.
Application scenarios
- Ventilation systems in office and administrative buildings
- Industrial and commercial premises
- Schools and educational establishments
- Hospitals and healthcare facilities
- Public buildings
- Refurbishment and modernisation projects
- Suspension of air ducts with increased requirements for sound decoupling
All information is provided without guarantee. Technical specifications, illustrations, and prices are subject to change and are non-binding. Errors excepted.
| Diameter | max. M12 |
|---|---|
| Part group | 190902 |
| Material | Galvanized steel |
| Product dimensions | L1 ≈ 160 mm / L2 ≈ 40 mm / H ≈ 32 mm |
| Filetage | M10 |
| Packaging unit | 100 St. |
