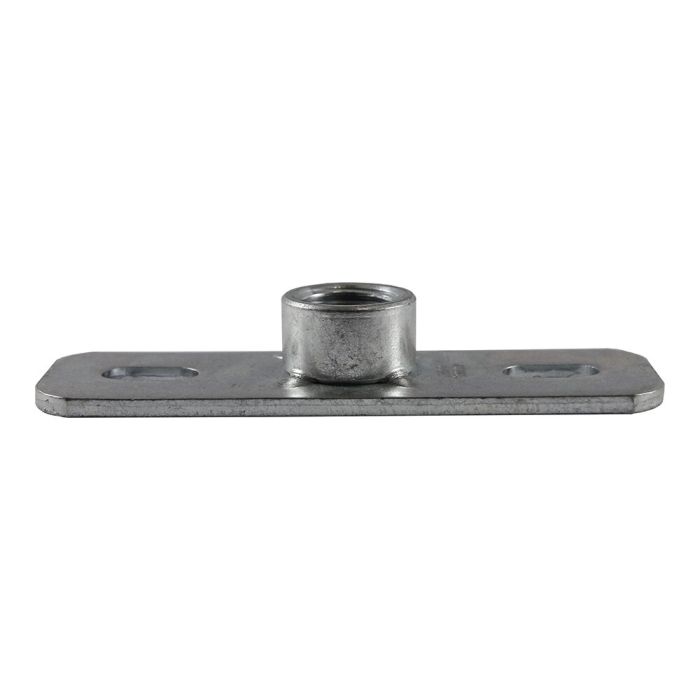

Base plate - 1/2"

Connection: 1/2", maximum recommended load: 4,000 N, 120 x 40 x 4 mm

Article number

472

Base plate - 1/2" is available to buy in increments of 50

Description

Robust fastening solution for secure mounting structures

The MEZ BASE PLATE 1/2" has been developed for stable and heavy-duty mounting structures. It ensures the secure fastening of pipelines, brackets and mounting systems in ventilation, air-conditioning and plant engineering. Thanks to its high load-bearing capacity of up to 4,000 N, the base plate is suitable for demanding fastening tasks. At the same time, its compact design allows for easy integration into various mounting systems.

The high-quality electro-galvanised finish provides reliable protection against corrosion and ensures a long service life. This means the structure remains reliable and stable even during continuous use. As standard, the base plate is fitted with a resistance-welded nut or sleeve. This ensures a secure threaded connection and facilitates on-site installation.

Technical Highlights

Connection 1/2"
Maximum recommended load 4,000 N
Dimensions 120 x 40 x 4 mm
High-quality galv. treatment
Resistance-welded nut or sleeve as standard
Type A resistance-welded
Type B fully welded

Key features

High load-bearing capacity for secure structures
Reliable corrosion protection
Robust steel construction
Easy integration into assembly systems
Versatile application

Additional features

Suitable for professional assembly applications
Durable design
High stability with a low profile
Suitable for various fastening solutions
Proven quality for everyday use

Installation

Secure the base plate in the intended position
Establish a threaded connection with a suitable fitting
Check the alignment of the structure
Tighten the fastenings and check the load-bearing capacity
Suitable for permanent installation applications

Why is this MEZ BASE PLATE 1/2‘ right for you?

The MEZ BASE PLATE 1/2’ is the ideal solution for stable and robust mounting structures.

Thanks to its high load-bearing capacity, galv. surface and robust welded joint, it is ideally suited to professional fastening tasks in ventilation, plant engineering and pipework construction. It ensures a secure installation and guarantees the long-term stability of the structure.
