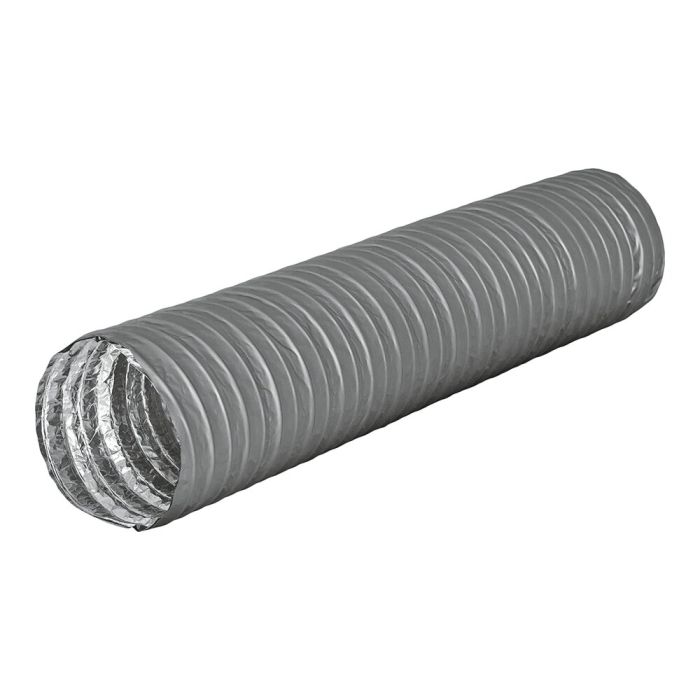

COMBIDEC 2100 - Ø 100

Robust, fully flexible and lightweight laminate hose
Temperature range: -30 to +140°C
Max. operating pressure: +3.000 Pa

MEZ-COMBIDEC 2100 is a robust, fully flexible, lightweight laminate hose for various applications. The laminate hose consists of several layers of aluminium and polyester with a concealed wire spiral. The hose is based on an aluminium laminate hose with an outer layer of co-polymer. COMBIDEC 2100 can be easily mounted to oval and round connectors.
The fire resistance of COMBIDEC 2100 has been tested in several countries according to international standards. The hoses have been constructed from a specially developed "sandwich construction". This means that the different layers of polyester and aluminium completely overlap each other, making the construction particularly strong.
Application areas

Steam return lines
Areas where good mechanical strength is required
Mechanical ventilation

Advantages over hoses with PVC-coated fabrics

higher temperature resistance
less smoke development in case of fire

Advantages over aluminium laminate hoses

higher tensile strength
better mechanical protection against external influences
better resistance to localised stress

Material structure

Number of layers: 6
Layers of aluminium: 3 à 7µ
Polyester layers: 2 à 12µ
Embossing layers: 1 à 90µ
Total thickness: 155µ (without adhesive)
Wire spacing: 18 mm
Optics: Black

Technical details

Nominal diameter: 100 mm
Temperature range: -30°C to +140°C
Max operating pressure: +3.000 Pa
Max. air velocity: 30 m/s
Bending radius: min. 0,54 x ø
Standard length: 10 m

Certificates

Netherlands (NEN 6065/6066): Class 1 and 3
United Kingdom (BS 476): Part 6, 7 and 20

MEZ-COMBIDEC 2100 meet all requirements specified in EN 13180: "Ventilation of buildings - Air ducts - Dimensions and mechanical requirements for flexible ducts".
