Hanger M10

Heavy-duty suspension system for rectangular air duct systems

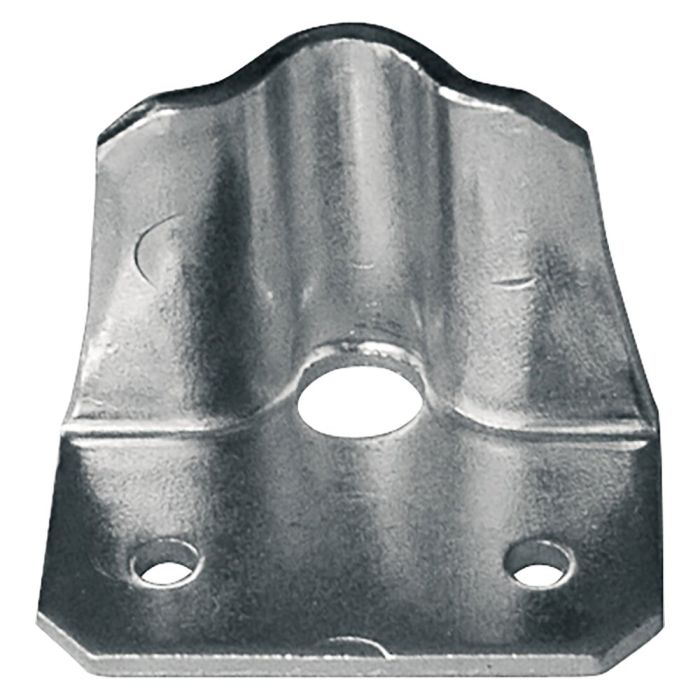

The MEZ SUSPENSION BRACKET has been specially developed for the secure suspension of rectangular air ducts. The rail is suitable for installation using M10 threaded rods. Thanks to its well-thought-out design, it reliably absorbs loads. At the same time, the product is easy to install.

The special box-shaped design sets it apart from simple fixings. It distributes the forces acting on it specifically over a longer section of the threaded rod. In addition, the design is supported by the duct wall. This reduces bending stresses and improves the stability of the entire suspension system.

A further advantage is the wide contact surface of the suspension bracket. It prevents the duct edge from buckling and ensures even load distribution. At the same time, part of the load-bearing surface of the nut lies beneath the edge of the duct. This enables the component to withstand high loads. This design prevents large forces that could cause the part to tip over or bend.

The galvanized steel construction provides reliable protection against corrosion. This makes the suspension bracket a durable solution for professional ventilation and plant engineering.

Technical Highlights

• Suitable for M10 threaded rods
• Made from galvanized steel
• Sturdy box-section construction
• Maximum load capacity 1.5 kN
• Wide contact surface for load distribution
• Suitable for rectangular air duct systems

Key features

• High load-bearing capacity thanks to special box-section construction
• Prevents the duct edge from buckling
• Reduces tilting and bending forces
• Safe and cost-effective fixing solution
• Corrosion-protected design

Additional features

• Support against the duct wall for additional stability
• Optimised load distribution over a longer section of the threaded rod
• The load-bearing surface of the nut lies partly beneath the duct edge
• Pop rivets or self-tapping screws are used solely to secure the position
• High operational reliability for professional air duct installations

Installation

• Attach the suspension bracket to the air duct at the designated position
• Connect to an M10 threaded rod
• Use pop rivets or self-tapping screws to secure the position
• Align and secure the air duct
• Check that the fixing is secure

Why is this suspension bracket suitable for you?

The suspension bracket is the ideal solution for the professional suspension of rectangular air ducts. The robust box-section design reduces bending stresses and ensures safe load transfer to the threaded rod. At the same time, the wide contact surface protects the duct edge from deformation and improves the stability of the entire suspension system. This results in a durable, cost-effective and robust fixing solution for ventilation and plant engineering.

Application scenarios

• Suspension of rectangular air ducts
• Ventilation systems
• Air conditioning systems
• Industrial and commercial installations
• Air distribution systems with M8 threaded rods
• New installations and modernisation
• Maintenance and repair work
