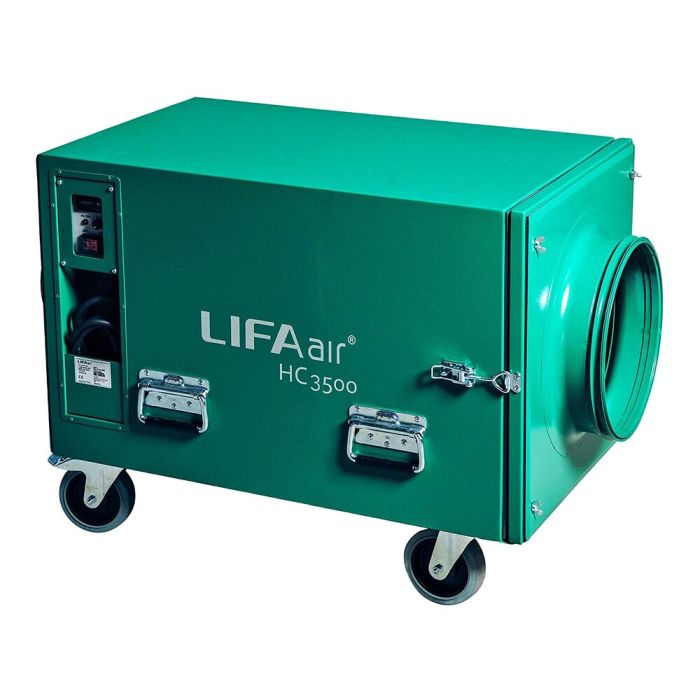

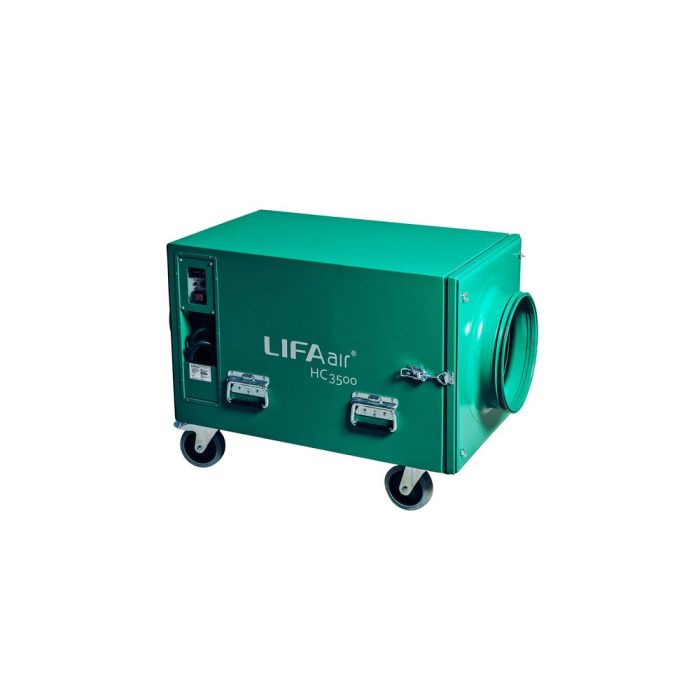

HEPA CLEAN 3500

High-performance negative pressure and filter unit for contaminated air

The HEPA CLEAN 3500 has been developed for the reliable extraction and filtration of contaminated air. It removes harmful particles from the indoor air and helps to ensure safe working conditions during refurbishment, construction and cleaning work. It protects staff, adjacent areas and technical equipment from the spread of pollutants. At the same time, the high airflow ensures efficient air purification even in demanding applications.

Whether asbestos fibres, lead, quartz dust, wood dust or other pollutants: the HEPA CLEAN 3500 reliably filters contaminated air and facilitates controlled air flow in work and renovation areas. Thanks to its ability to generate negative pressure, the unit is ideally suited to rooms and air ducts where pollutants must be safely contained and extracted.

Technical highlights

• Maximum airflow up to 3,600 m³/h
• Static pressure up to 960 Pa
• EC motor with 0.78 kW power
• Operating voltage 200 to 277 VAC, 1~
• Frequency 50/60 Hz
• Suction connection Ø 305 mm
• Exhaust connection Ø 305 mm
• Airflow adjustment directly on the control box
• Warning light for full filter
• Integrated operating hours counter
• Power cable, 3 m long
• Dimensions 960 x 650 x 540 mm
• Weight 57 kg
• Robust housing made of painted steel

Key features

• Reliable removal of harmful particles
• Ideal for asbestos, lead and dust remediation
• High airflow capacity for professional applications
• Suitable for creating negative pressure zones
• Robust design for daily use

Additional features

• Supports safe working conditions
• Prevents the spread of harmful substances
• Easy monitoring via filter warning indicator
• Flexible use in rooms and air ducts
• Durable construction with a powerful EC motor

Installation

• Set up in the work or remediation area
• Can be connected to existing air duct systems
• Used to create negative pressure in rooms and air ducts
• Adjust the airflow according to the application
• Check the HEPA filter regularly and replace it if necessary

Why is the HEPA CLEAN 3500 right for you

The HEPA CLEAN 3500 is the ideal solution for professional users who need to safely extract and filter contaminated air. Thanks to its high airflow rate of up to 3,600 m³/h, the powerful EC motor and the ability to generate negative pressure, the unit is suitable for demanding renovation, maintenance and cleaning tasks. At the same time, the filter monitoring system and robust construction ensure reliable operation in day-to-day use.

Application scenarios

• Asbestos removal
• Lead and quartz dust removal
• Wood dust extraction
• Maintaining negative pressure in remediation areas
• Ventilation and air duct systems
• Industrial and commercial facilities
• Construction and renovation work
• Maintenance and cleaning work

All information is provided without guarantee. Technical specifications, illustrations and prices are subject to change and are not binding. Errors excepted
