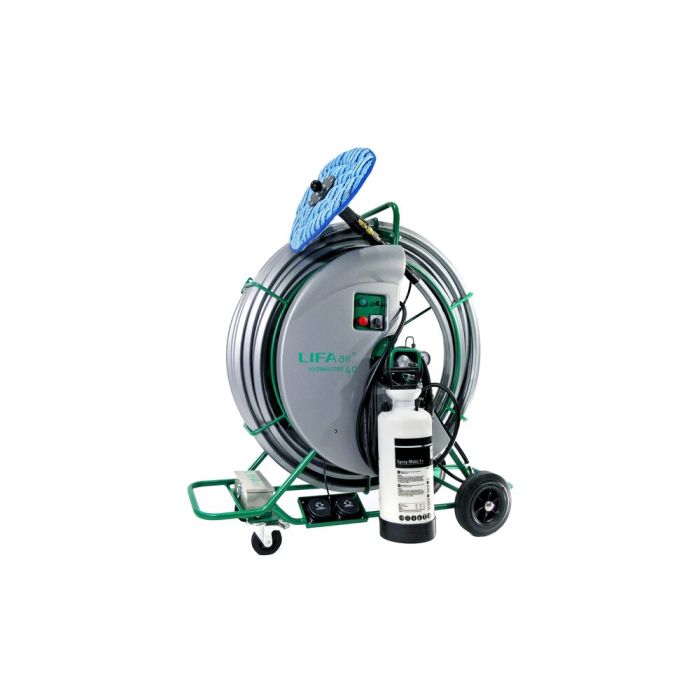

Hydmaster 40 MULTI
for 400 - 1,200 mm ducts, 40 m cleaning shaft, 880 rpm.
Article number
LA6420281012648
Hydmaster 40 MULTI is available to buy in increments of 1
By far the most powerful cleaning machine on the market
Shaft length: 40 m
For ducts up to 1200 mm
The Hydmaster 40 is the most powerful cleaning machine on the market. It is designed for demanding cleaning jobs in industry, commerce, power plants and mills.Due to the monophase voltage (230 V), the Hydmaster runs quieter than other pneumatic cleaning machines. 75 meters of cleaning sections with only one inspection opening are possible due to the 40 meters long shaft of the HM40.
The new Hydmaster 40 MULTI allows the pressure sprayer (see accessories) to be connected directly to the machine so that all functions can be used simultaneously.
The force that moves the brush is generated hydraulically along the flexible shaft. The built-in hydraulic pump offers the best alternative to large, expensive, noisy and not user-friendly pneumatic cleaning machines, which are powered by compressed air. The machine uses environmentally friendly, synthetic and biodegradable oil. The hydraulic tubes have a laminated, durable nylon fiber interior, which makes the Hydmaster the most durable cleaning machine on the market .
The speed is adjustable from 0 to 800 r / min. Due to this power, it is possible with the HM40 to turn oversized brushes in narrow and smaller channels to further increase the cleaning effect.
Note: Neither the brush nor the bottle are included in the price of the machine! These accessories must be purchased separately.
Application areas
Industrial exhaust air and process air ducts
Kitchen exhaust air (fat)
Commercial real estate
Technical information
Operating power Electricity (brush motor hydraulic)
Operating voltage and frequency 240 VAC (or 110-120 VAC), 1~, 50/60 Hz
Motor 1,1 kW (1.5 hp)
Fuse 16 A
Max torque 10 Nm (7.4 ft·lb)
Brush connection M12
Duct size recommendation 400–1200 mm (15,7 –47.2”)
Brush rotation speed Continuous adjustment, 225–880 rpm
Rotation controls Foot pedal, remote hand control (accessory)
Measurements: Height: 1290 mm (50.8”)
Length: 1100 mm (43.3”)
Width: 570 mm (22.4”)
Weight: 93 kg (205 lbs)
Length of shaft 40 m (131 ft.)
Accessories Y-gear, 3-brush-gear, mechanical centering device, hand controller
Shaft length: 40 m
For ducts up to 1200 mm
The Hydmaster 40 is the most powerful cleaning machine on the market. It is designed for demanding cleaning jobs in industry, commerce, power plants and mills.Due to the monophase voltage (230 V), the Hydmaster runs quieter than other pneumatic cleaning machines. 75 meters of cleaning sections with only one inspection opening are possible due to the 40 meters long shaft of the HM40.
The new Hydmaster 40 MULTI allows the pressure sprayer (see accessories) to be connected directly to the machine so that all functions can be used simultaneously.
The force that moves the brush is generated hydraulically along the flexible shaft. The built-in hydraulic pump offers the best alternative to large, expensive, noisy and not user-friendly pneumatic cleaning machines, which are powered by compressed air. The machine uses environmentally friendly, synthetic and biodegradable oil. The hydraulic tubes have a laminated, durable nylon fiber interior, which makes the Hydmaster the most durable cleaning machine on the market .
The speed is adjustable from 0 to 800 r / min. Due to this power, it is possible with the HM40 to turn oversized brushes in narrow and smaller channels to further increase the cleaning effect.
Note: Neither the brush nor the bottle are included in the price of the machine! These accessories must be purchased separately.
Application areas
Industrial exhaust air and process air ducts
Kitchen exhaust air (fat)
Commercial real estate
Technical information
Operating power Electricity (brush motor hydraulic)
Operating voltage and frequency 240 VAC (or 110-120 VAC), 1~, 50/60 Hz
Motor 1,1 kW (1.5 hp)
Fuse 16 A
Max torque 10 Nm (7.4 ft·lb)
Brush connection M12
Duct size recommendation 400–1200 mm (15,7 –47.2”)
Brush rotation speed Continuous adjustment, 225–880 rpm
Rotation controls Foot pedal, remote hand control (accessory)
Measurements: Height: 1290 mm (50.8”)
Length: 1100 mm (43.3”)
Width: 570 mm (22.4”)
Weight: 93 kg (205 lbs)
Length of shaft 40 m (131 ft.)
Accessories Y-gear, 3-brush-gear, mechanical centering device, hand controller
