Hypertherm Powermax 45 Sync Kit mech. 10,7 m 088587

PRECISE, AUTOMATED PLASMA CUTTING.

The Hypertherm Powermax 45 SYNC Kit 088587 is a powerful and ready-to-use complete system for immediate entry into automated plasma cutting. It combines the latest SYNC technology with high-quality accessories to ensure consistently precise cutting results – ideal for workshops, industrial use, and machine integration.

The integrated SmartSYNC technology allows for quick setup through intelligent cartridge recognition, reducing downtime and ensuring consistent cut quality. This specially assembled kit includes all components needed to operate the power source immediately.

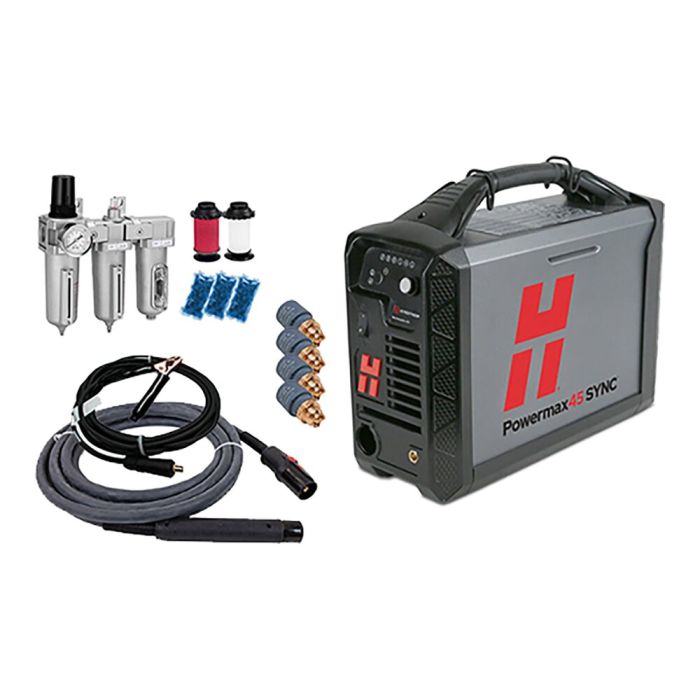

Included in the kit:

• Plasma power source Hypertherm Powermax 45 SYNC (088574)

• CPC interface for machine control (428653)

• Power cable 400 V / 16 A CEE, length: 3 m

• Compressed air connection with DIN 7.2 mm coupling

• SmartSYNC machine torch 180°, length: 10.7 m (059720)

• Work lead 45 A, length: 10.7 m (223595)

• 3x SmartSYNC cartridge 30–45 A Mech. FineCut (428926)

• 1x SmartSYNC cartridge 30–45 A Mech. Standard (428925)

• Powermax SYNC cartridge reader (528083)

• Operating manual (German)

Compressed air treatment accessories:

• 3-stage water separator and adsorption dryer 1/2"

• Integrated pressure regulator with soft-start function and pressure gauge

• Connection materials

• 5 m compressed air hose (10 mm)

• Replacement filter inserts

Notes:

• This set is not identical to Hypertherm kit number 088585 but was individually assembled to provide a fully functional and ready-to-use solution.

• If replacing an existing Hypertherm Powermax system (e.g., Powermax 1000), the existing CPC interface cablecan be reused.

• When replacing a system from another manufacturer (e.g., Thermal Dynamics) or installing a new setup, a separate CPC cable (e.g., item no. 023206 or 228350) must be ordered.

• To ensure optimal cutting results, the use of a thermal air dryer (refrigerated dryer) is highly recommended. The line to the power source should not exceed 5 m. The included filter unit also serves as a residual moisture indicator.
