Hypertherm Powermax 45 Sync Kit mech. 15,2 m 088586

PRECISE, AUTOMATED PLASMA CUTTING.

The Hypertherm Powermax 45 SYNC Kit 088586 is a powerful and ready-to-use complete system for immediate entry into automated plasma cutting. It combines the latest SYNC technology with high-quality accessories to ensure consistently precise cutting results – ideal for workshops, industrial use, and machine integration.

The integrated SmartSYNC technology enables quick setup through intelligent cartridge recognition, reduced downtime, and consistently high cutting quality. This specially assembled kit includes all components required to put the power source into operation immediately.

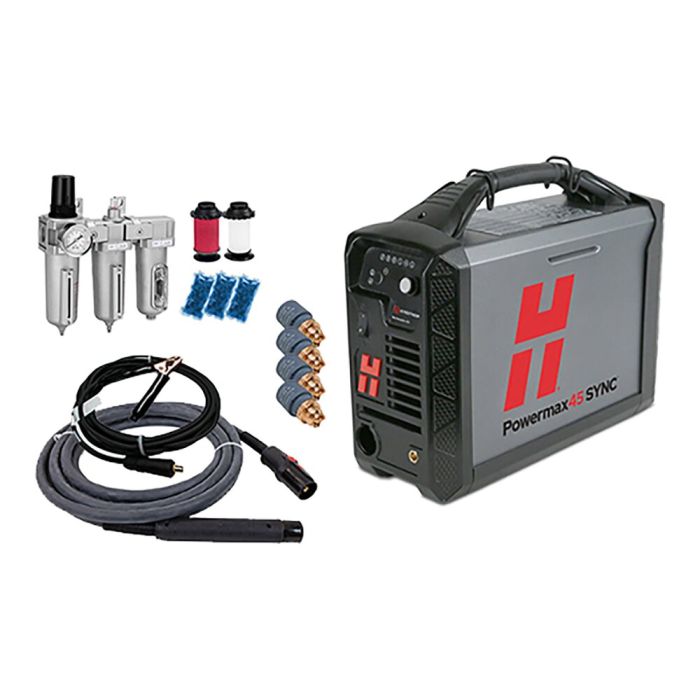

Included in the kit:

• Plasma power source Hypertherm Powermax 45 SYNC (088574)

• CPC interface for machine control (428653)

• Power cable 400 V / 16 A CEE, length: 3 m

• Compressed air connection with DIN 7.2 mm coupling

• SmartSYNC machine torch 180°, length: 15.2 m (059721)

• Work lead 45 A, length: 15.2 m (223595)

• 3x SmartSYNC cartridge 30–45 A Mech. FineCut (428926)

• 1x SmartSYNC cartridge 30–45 A Mech. Standard (428925)

• Powermax SYNC cartridge reader (528083)

• Operating manual (German)

Compressed air treatment accessories:

• 3-stage water separator and adsorption dryer 1/2"

• Integrated pressure regulator with soft-start function and pressure gauge

• Connection material

• 5 m compressed air hose (10 mm)

• Replacement filter inserts

Notes:

• This set is not identical to Hypertherm kit number 088585 but has been individually assembled to provide a fully functional and ready-to-use solution.

• If replacing an existing Hypertherm Powermax unit (e.g., Powermax 1000), the existing CPC interface cable can be reused.

• If replacing a different brand plasma system (e.g., Thermal Dynamics) or installing on a new machine, a separate CPC interface cable (e.g., item no. 023206 or 228350) must be ordered.

• For optimal cutting performance, a thermal air dryer (refrigerated dryer) is strongly recommended. The line length from the dryer to the power source should not exceed 5 m. The included filter unit also serves as a residual moisture indicator and further supports air quality.
