Hypertherm Powermax 45 Sync Kit mech. 22,8 m 088588

PRECISE, AUTOMATED PLASMA CUTTING.

The Hypertherm Powermax 45 SYNC Kit 088588 is a powerful and ready-to-use complete system for immediate entry into automated plasma cutting. It combines the latest SYNC technology with high-quality accessories to ensure consistently precise cutting results – ideal for workshops, industrial applications, and machine integration.

The integrated SmartSYNC technology enables quick setup through intelligent cartridge recognition, reducing downtime and ensuring consistently high cut quality. This custom-assembled kit includes all components needed for immediate operation.

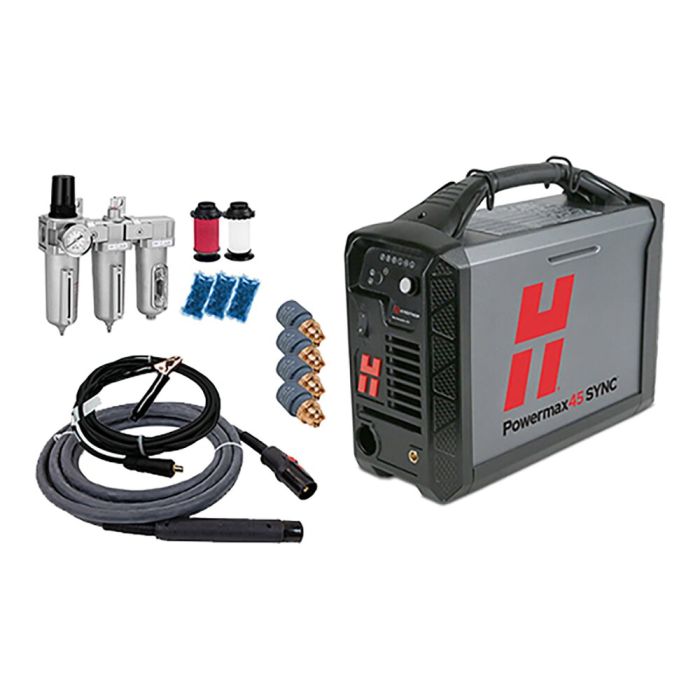

Included in the kit:

• Plasma power source Hypertherm Powermax 45 SYNC (088574)

• CPC interface for machine control (428653)

• Power cable 400 V / 16 A CEE, length: 3 m

• Compressed air connection with DIN 7.2 mm coupling

• SmartSYNC machine torch 180°, length: 22.8 m

• Work lead 45 A, length: 22.8 m (223595)

• 3x SmartSYNC cartridge 30–45 A Mech. FineCut (428926)

• 1x SmartSYNC cartridge 30–45 A Mech. Standard (428925)

• Powermax SYNC cartridge reader (528083)

• Operating manual (German)

Compressed air treatment accessories:

• 3-stage water separator and adsorption dryer 1/2"

• Integrated pressure regulator with soft-start function and pressure gauge

• Connection materials

• 5 m compressed air hose (10 mm)

• Replacement filter inserts

Notes:

• This set is not identical to Hypertherm kit number 088585, but was individually assembled to offer a complete and immediately operational solution.

• If replacing an existing Hypertherm Powermax system (e.g., Powermax 1000), the existing CPC interface cablecan be reused.

• When replacing a system from another manufacturer (e.g., Thermal Dynamics) or installing a new setup, a separate CPC cable (e.g., item no. 023206 or 228350) must be ordered.

• To ensure optimal cutting results, the use of a thermal air dryer (refrigerated type) is strongly recommended. The air line to the power source should not exceed 5 m. The included filter unit also serves as a residual moisture indicator.
