Hypertherm Powermax 45 Sync Kit mech. 7,6 m 088585

PRECISE, AUTOMATED PLASMA CUTTING.

The Hypertherm Powermax 45 SYNC Kit 088585 is a powerful and ready-to-use complete set for immediate entry into automated plasma cutting. It combines the latest SYNC technology with high-quality accessories for consistently precise cutting results - ideal for workshops, industry and machine integration.

The integrated SmartSYNC technology enables fast set-up, reduced downtime and consistently high cutting quality thanks to intelligent cartridge recognition. This specially assembled kit contains all the components needed to put the power source directly into operation.

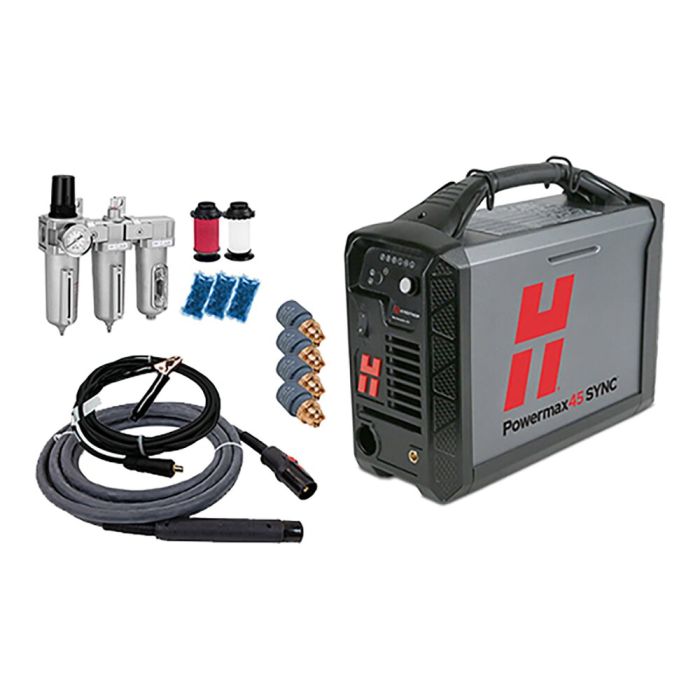

Scope of delivery:

Plasma power source Hypertherm Powermax 45 SYNC (088574)

CPC interface for machine control (428653)

Power connection cable 400 V / 16 A CEE, length: 3 m

Compressed air connection with DIN 7.2 mm coupling

SmartSYNC machine torch 180°, length: 7.6 m (059719)

Working cable 45 A, length: 7.6 m (223595)

3x SmartSYNC Cartridge 30-45 A Mech. FineCut (428926)

1x SmartSYNC Cartridge 30-45 A Mech. Standard (428925)

Powermax SYNC Cartridge Reader (528083)

Operating instructions in German

Accessories for compressed air preparation:

3-stage water separator and adsorption dryer 1/2"

Integrated pressure reducer with start boost and pressure gauge

Connection material

5 m compressed air hose (10 mm)

Spare filter inserts

Notes:

This kit is not identical to the Hypertherm kit under article number 088585, but has been put together individually to provide a complete and ready-to-use solution.

If another Hypertherm Powermax plasma power source (e.g. Powermax 1000) has already been used, the existing CPC interface cable can continue to be used.

When replacing a plasma power source from another manufacturer (e.g. Thermal Dynamics) or when using it on a new machine, a separate CPC cable (e.g. item no. 023206 or 228350) must be ordered.

For optimum cutting results, the use of a thermal compressed air dehydrator (refrigerant dryer) is strongly recommended. The line distance between the dryer and the power source should not exceed 5 metres. The supplied filter unit also serves as an indicator for residual moisture and supports the compressed air quality.
