MEZ-AIRVANE

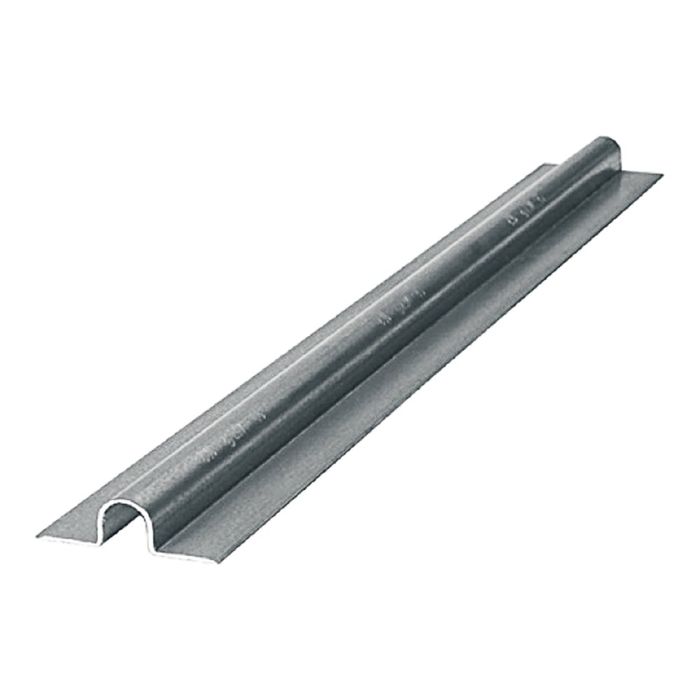

MEZ-AIRVANE – Intermediate stiffener for vibration-free air deflectors
The MEZ-AIRVANE is a specially developed stiffening profile for guide vanes, designed specifically to stabilize airflow components in duct and air handling units. Thanks to its robust construction from galvanized steel and the ability to integrate directly into the guide vane edge, the profile ensures a significant reduction in vibrations.
In practice, insufficiently reinforced guide vanes often lead to noise generation, material fatigue, or performance losses in the airflow. The MEZ-AIRVANE provides a simple yet effective solution here.
Technical Highlights
- Securing and reinforcement profile for guide vanes
- Material: Galvanized steel
- Diameter: Ø 11 mm
- Length: 5 m
- Dimensions: A: 45 mm / B: 12 mm / C: 13 mm / D: 11 mm / S: 1.00 mm
- Packaging unit: 500 m
- Fastening via spot welding or stamping possible
Key Features
- Reduction of oscillations and vibrations during operation
- Increased stability of baffle plate edges
- Extended service life of air distribution systems
- Easy integration into existing manufacturing processes
- Cost-effective solution thanks to robust steel construction
Additional Features
- Standardized stiffening profile reduces the number of variants and ensures easy procurement
- Less vibration means reduced wear and extended maintenance intervals
Installation
- Easy cutting to desired length
- Precise alignment along the air deflector edge
- Flexible fastening via spot welding or embossing
- Efficient installation in manufacturing and on-site
Why is this stiffening profile right for you
The MEZ-AIRVANE is the ideal solution for all applications where air deflectors must be designed to be permanently stable and low-vibration. It improves operational reliability, reduces noise, and enhances the quality of the entire airflow—a clear advantage in professional ventilation and plant engineering.
Application scenarios
- Intermediate stiffening of air deflectors in air ducts
- Stabilization of baffle plate edges in HVAC systems
- Series production of air distribution systems
- Optimization of existing systems for vibration reduction
- Use in commercial and industrial ventilation systems
All information is provided without warranty. Technical data, illustrations, and prices are subject to change and are non-binding. Errors excepted.
| Part group | 120210 |
|---|---|
| Material | Galvanized steel |
| Product dimensions | A: 45 mm / B: 12 mm / C: 13 mm / D: 11 mm / S: 1,00 mm |
| Länge | 5 m |
| Packaging unit | 500 m |
