MEZ-ALU-COMPACT - Ø 200
-30 to +250°C, dia. 200 mm
Article number
1040/200
MEZ-ALU-COMPACT - Ø 200 is available to buy in increments of 1

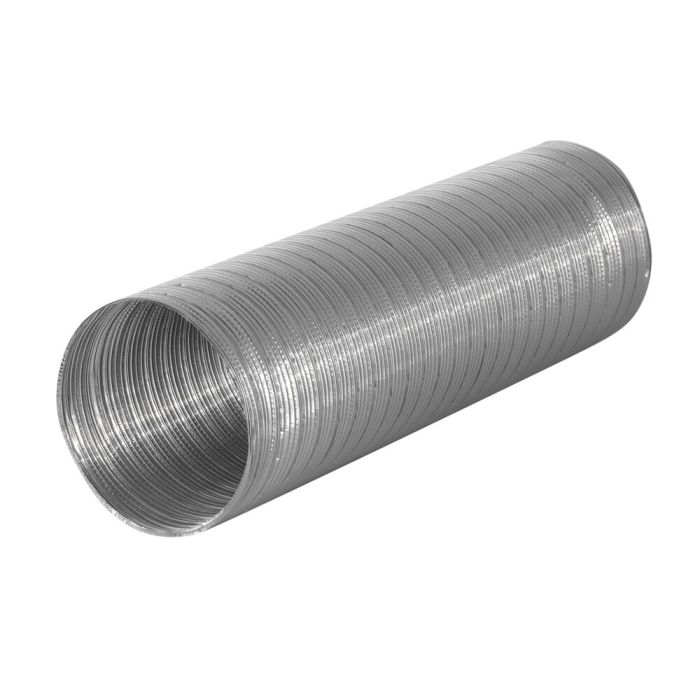

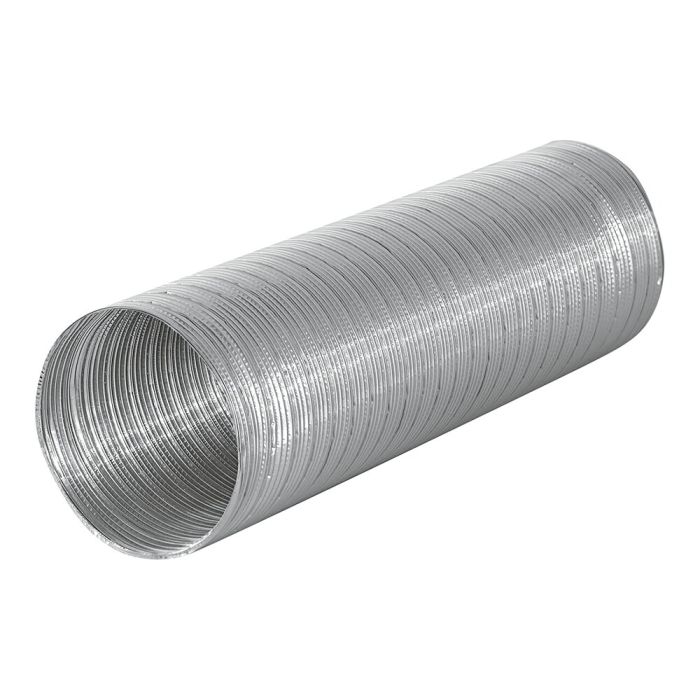

Flexible tube made of aluminium
Max. operating pressure: +3.000 Pa
Max. airflow velocity: 30 m/s
MEZ-ALU-COMPACT is a flexible tube made of two layers of aluminium and is ideally suited for ventilation and air conditioning systems. With a temperature range from -30 to +250°C and a maximum value of +400°C the flexible tube, with a standard length of 5 meter, is extremely versatile. Furthermore the MEZ-ALU-COMPACT meets the requirements of the fire class A1 according to DIN 4102 and EN 13501-1 and therefore it is non-flammable.
Max. operating pressure: +3.000 Pa
Max. airflow velocity: 30 m/s
MEZ-ALU-COMPACT is a flexible tube made of two layers of aluminium and is ideally suited for ventilation and air conditioning systems. With a temperature range from -30 to +250°C and a maximum value of +400°C the flexible tube, with a standard length of 5 meter, is extremely versatile. Furthermore the MEZ-ALU-COMPACT meets the requirements of the fire class A1 according to DIN 4102 and EN 13501-1 and therefore it is non-flammable.
| Teilegruppe | 170302 |
|---|
