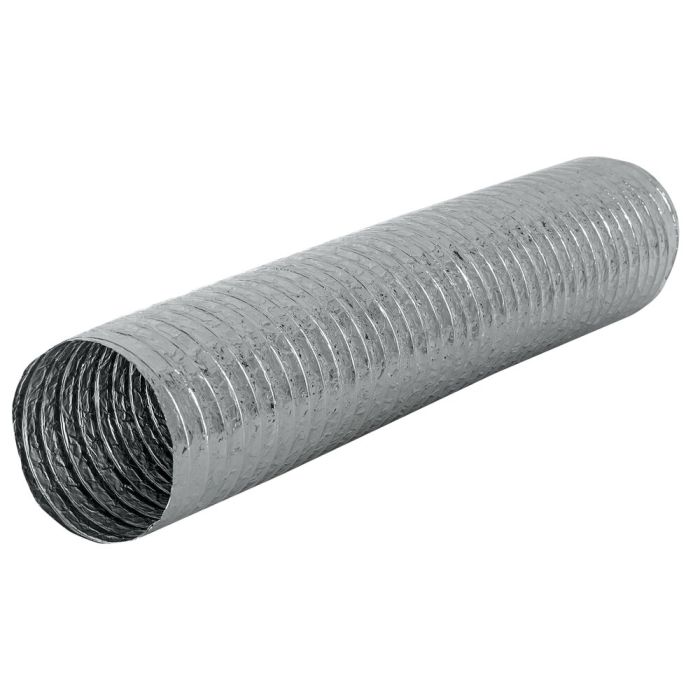

MEZ-ALUDEC 112 - Ø 254

Fully flexible and strong laminate hose
Temperature range: -30 to +250°C
Max. operating pressure: +3.000 Pa

MEZ-ALUDEC 112 is a fully flexible and strong laminate hose for various applications. The hose consists of several layers of aluminium and polyester with a hidden wire spiral. ALUDEC 112 can be easily mounted on round and oval connectors. The fire resistance of ALUDEC 112 has been tested in several countries according to international standards. The fully flexible laminate hose is made of a specially developed "sandwich construction", which means that the different layers of polyester and aluminium completely overlap each other. This makes the construction particularly strong.
Application areas

General ventilation purposes, where higher temperature resistance is required
Air treatment systems, where a higher temperature resistance is required

Material structure

Number of layers: 4
Layers of aluminium: 3 à 25µ
Polyester layers: 1 à 12µ
Total thickness: 87µ (without adhesive)
Wire spacing: 18 mm
Optics: Aluminium

Technical details

Nominal diameter: 254 mm
Temperature range: -30°C to +250°C
Max. operating pressure: +3.000 Pa
Max. air velocity: 30 m/s
Bending radius: min. 0,58 x ø
Standard length: 10 m

Certificates

Europe (EN 13501-1): A1
France (NF): M0
United Kingdom (BS 476): Part 6, 7 and 20
Switzerland BKZ): 6Q3
Marine Equipment Directive (2014/90/EU): •

MEZ-ALUDEC 112 meet all requirements specified in EN 13180: "Ventilation of buildings - Air ducts - Dimensions and mechanical requirements for flexible ducts".
