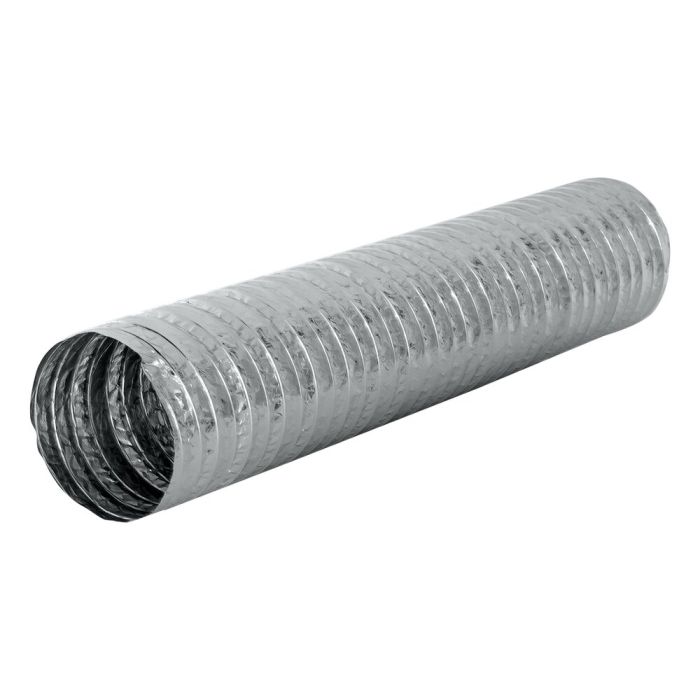

MEZ-ALUDEC 245 - Ø 102

Fully flexible and strong laminate hose
Temperature range: -30 to +140°C
Max. operating pressure: +2.500 Pa

MEZ-ALUDEC 245 is a fully flexible and strong laminate hose for various applications. The hose consists of several layers of aluminium and polyester with a hidden wire spiral. ALUDEC 245 can be easily mounted on round and oval connectors. The fire resistance of ALUDEC 245 has been tested in several countries according to international standards. The fully flexible laminate hose is made of a specially developed "sandwich construction", which means that the different layers of polyester and aluminium completely overlap each other. This makes the construction particularly strong.
Application areas

General ventilation purposes, without special requirements
Air treatment systems, without special requirements

Material structure

Number of layers: 5
Layers of aluminium: 3 à 7µ
Polyester layers: 2 à 12µ
Total thickness:: 45µ (without adhesive)
Wire spacing: 18 mm
Optics: Aluminium

Technical details

Nominal diameter: 102 mm
Temperature range: -30°C to +140°C
Max. operating pressure: +2.500 Pa
Max. air velocity: 30 m/s
Bending radius: min. 0,54 x ø
Standard length: 10 m

Certificates

Europe (EN 13501-1): B-s1, d0
France (NF): M1
United Kingdom (BS 476): Part 6, 7 and 20
Marine Equipment Directive (2014/90/EU): •

MEZ-ALUDEC 245 meet all requirements specified in EN 13180: "Ventilation for buildings - Air ducts - Dimensions and mechanical requirements for flexible ducts".
