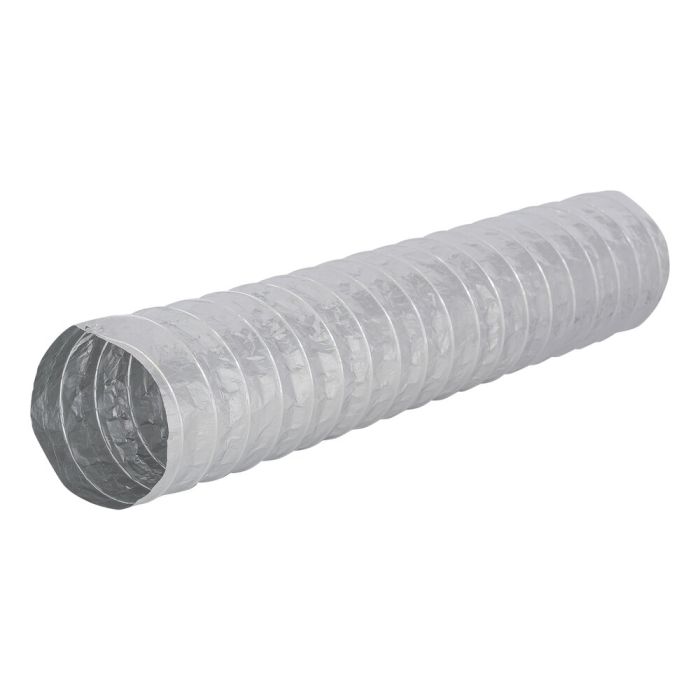

MEZ-ALUDEC AA3 - Ø 127
30 to +140°C, dia. 127 mm
Article number
1048/127
MEZ-ALUDEC AA3 - Ø 127 is available to buy in increments of 1
Fully flexible and strong laminate hose
Temperature range: -30 to +140°C
Max. operating pressure: +2.500 Pa
MEZ-ALUDEC AA3 is a fully flexible and strong laminate hose for various applications. The hose consists of several layers of aluminium and polyester with a hidden wire spiral. ALUDEC AA3 can be easily mounted on round and oval connectors. The fire resistance of ALUDEC AA3 has been tested in several countries according to international standards. The fully flexible laminate hose is made of a specially developed "sandwich construction", which means that the different layers of polyester and aluminium completely overlap each other. This makes the construction particularly strong.
Application areas
General ventilation purposes, without special requirements
Air treatment systems, without special requirements
Material structure
Number of layers: 5
Layers of aluminium: 3 à 7µ
Polyester layers: 2 à 12µ
Total thickness: 45µ (without adhesive)
Wire spacing: 36 mm
Optics: Aluminium
Technical details
Nominal diameter: 127 mm
Temperature range: -30°C to +140°C
Max. operating pressure: +2.500 Pa
Max. air velocity: 30 m/s
Bending radius: min. 0,54 x ø
Standard length: 10 m
Certificates
Europe (EN 13501-1): B-s1, d0
France (NF): M1
United Kingdom (BS 476): Part 6, 7 and 20
Marine Equipment Directive (2014/90/EU): •
MEZ-ALUDEC AA3 meet all requirements specified in EN 13180: "Ventilation for buildings - Air ducts - Dimensions and mechanical requirements for flexible ducts".
Temperature range: -30 to +140°C
Max. operating pressure: +2.500 Pa
MEZ-ALUDEC AA3 is a fully flexible and strong laminate hose for various applications. The hose consists of several layers of aluminium and polyester with a hidden wire spiral. ALUDEC AA3 can be easily mounted on round and oval connectors. The fire resistance of ALUDEC AA3 has been tested in several countries according to international standards. The fully flexible laminate hose is made of a specially developed "sandwich construction", which means that the different layers of polyester and aluminium completely overlap each other. This makes the construction particularly strong.
Application areas
General ventilation purposes, without special requirements
Air treatment systems, without special requirements
Material structure
Number of layers: 5
Layers of aluminium: 3 à 7µ
Polyester layers: 2 à 12µ
Total thickness: 45µ (without adhesive)
Wire spacing: 36 mm
Optics: Aluminium
Technical details
Nominal diameter: 127 mm
Temperature range: -30°C to +140°C
Max. operating pressure: +2.500 Pa
Max. air velocity: 30 m/s
Bending radius: min. 0,54 x ø
Standard length: 10 m
Certificates
Europe (EN 13501-1): B-s1, d0
France (NF): M1
United Kingdom (BS 476): Part 6, 7 and 20
Marine Equipment Directive (2014/90/EU): •
MEZ-ALUDEC AA3 meet all requirements specified in EN 13180: "Ventilation for buildings - Air ducts - Dimensions and mechanical requirements for flexible ducts".
| Part group | 170305 |
|---|
