MEZ-CRAMP

Beam clamp with through-hole for flexible fixing to steel beams up to 5.5 kN
Article number
859/10
Loading...
Your price:
MEZ-CRAMP is available to buy in increments of 50

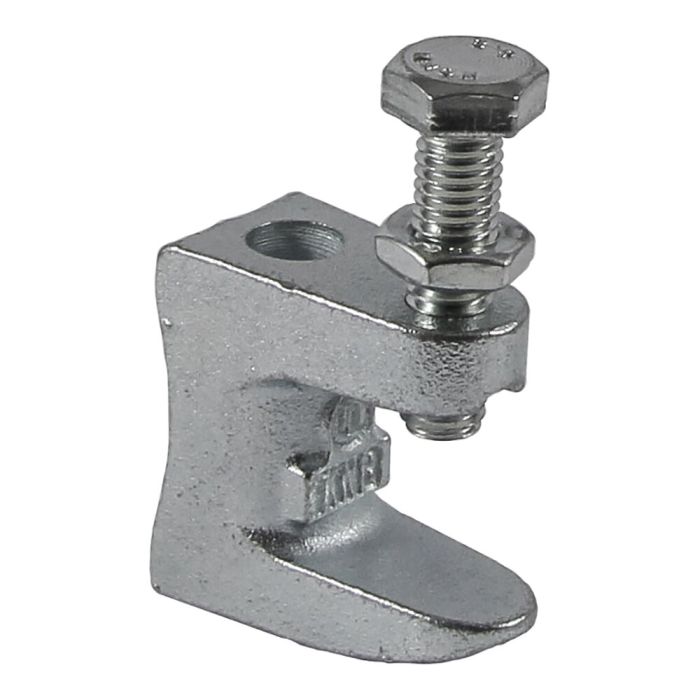

Malleable cast iron beam clamp with through-hole



The MEZ-CRAMP M17 (unthreaded) is a robust beam clamp for securing pipelines, ventilation ducts, sprinkler systems and other suspensions directly to steel beams. The galv. malleable cast iron version offers a stable and durable fixing solution for professional installation work.

The M17 version features a threadless through-hole with a diameter of 18 mm. This allows the threaded rod to be positioned quickly and adjusted flexibly in height. This simplifies alignment during assembly and facilitates efficient installation. With a maximum load capacity of 5.5 kN, the beam clamp is suitable for a variety of fixing tasks in building services engineering, as well as in ventilation and plant engineering.



Technical highlights

  • Beam clamp made from galv. malleable cast iron
  • Threadless through-hole for M17 with Ø 18 mm
  • Maximum load 5.5 kN
  • Quick height adjustment of the threaded rod
  • For direct fixing to steel beams
  • Robust design for professional installations



Key features

  • Quick and straightforward installation
  • Flexible height adjustment
  • Secure fixing to steel beams
  • Versatile for use with various suspension systems
  • Corrosion-protected design



Additional features

  • Suitable for ventilation ducts
  • Suitable for pipelines
  • Suitable for use with sprinkler systems
  • Compact and robust construction
  • Suitable for building services equipment



Installation

  • Position the beam clamp on the steel beam
  • Securely fasten the clamp
  • Feed the M17 threaded rod through the non-threaded through-hole
  • Adjust the threaded rod to the desired height
  • Then check that the connection is secure



Why is this beam clamp right for you?

This beam clamp is the ideal solution when suspensions need to be fixed to steel beams quickly and reliably. The non-threaded through-hole facilitates height adjustment of the M17 threaded rod and enables quick and flexible installation. With a maximum load capacity of 5.5 kN, the beam clamp is suitable for a wide range of professional fastening tasks.



Application scenarios

  • Ventilation ducts
  • Pipelines
  • Sprinkler systems
  • Installation on steel beams
  • Suspensions with M17 threaded rods
  • Industrial and commercial facilities
  • Building services equipment





All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.

Features
Part group191101
MaterialMalleable cast iron
FiletageM17
Packaging unit50 St.
