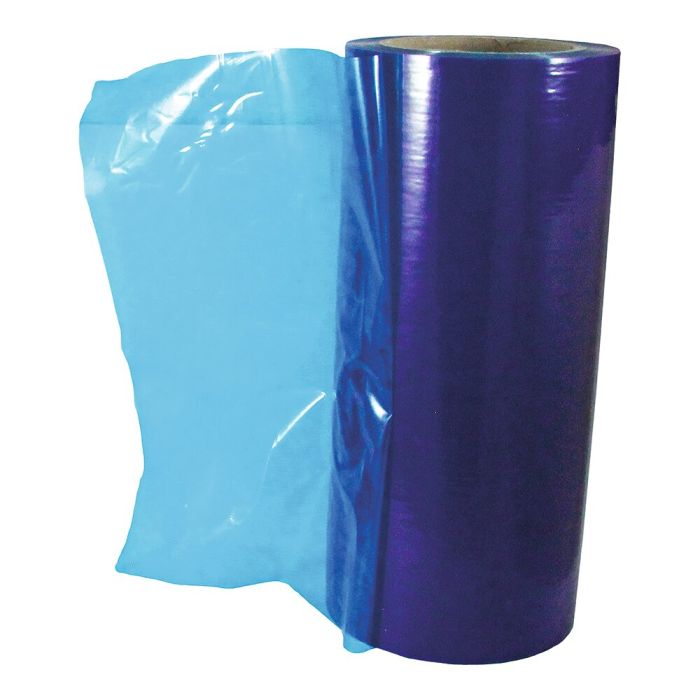

MEZ-DUCT-WRAP 750

Self-adhesive duct sealing film for clean temporary closures during construction

The MEZ-DUCT-WRAP 750 is a robust, self-adhesive protective film designed for the professional temporary sealing of air ducts and pipes during construction. Its key advantage: reliable protection combined with residue-free removal – ideal for clean and efficient ventilation installation processes.

Exposed ducts during transport and the construction phase often lead to contamination that is time-consuming to remove or compromises the quality of the installation. This ventilation duct protective film prevents precisely that: it securely seals components, protects against external influences and ensures that air distribution systems remain clean until commissioning.

With 100 metres per roll and a width of 750 mm, the duct sealing film is optimally designed for cost-effective use on building sites. The wider film width is particularly suitable for larger duct cross-sections and enables quick, efficient sealing with fewer material joins.

Technical highlights

• Self-adhesive polyethylene-based film
• Material thickness: 40 µ
• Width: 750 mm
• Roll length: 100 metres
• Removable without leaving residue
• Acrylate adhesive (water-based)
• Adhesive strength on steel: 1.4 N/cm ± 0.2 N/cm
• Suitable for metal and painted surfaces
• Application temperature: +8 °C to approx. +40 °C
• Fire protection class B3 in accordance with DIN 4102
• 100% recyclable
• Suitable for use in accordance with VDI 6022
• For optimum adhesion, the substrate must be free from grease, oil, dust, moisture and other contaminants



Key features

• Secure temporary sealing of air ducts or pipes
• Effective protection against dust, moisture and damage
• No adhesive residue – no additional cleaning required
• High material strength for reliable hold
• Clean system right through to handover



Additional features

• Ensures continuous protection from the production site to the construction site
• Prevents the ingress of dirt particles into the duct system
• Supports compliance with hygiene requirements in accordance with VDI 6022
• Maintains the quality and functionality of ventilation components
• Ensures stable operations without unnecessary interruptions or rework



Installation

• Quick and easy application without special tools
• Can be applied directly to clean, dry surfaces
• Can be cut to size flexibly to suit different duct dimensions
• Secure adhesion during the construction phase
• Removal leaves no residue and causes no damage



Why is this self-adhesive film suitable for you

The MEZ-DUCT-WRAP 750 is the ideal solution if you wish to reliably seal air ducts or pipes during the construction process. This saves you both time and money. It combines durability, hygienic protection and ease of use in a cost-effective package. Thanks to the wider film width, even larger duct dimensions can be sealed quickly and efficiently – perfect for professional requirements in ventilation installation.

Application scenarios

• Temporary sealing of air ducts during construction
• Sealing of pipes and fittings
• Protection during transport and temporary storage
• Covering open duct ends on building sites
• Temporary protection against dust and moisture



All information is provided without guarantee. Technical specifications, illustrations, and prices are subject to change and are non-binding. Errors excepted.
