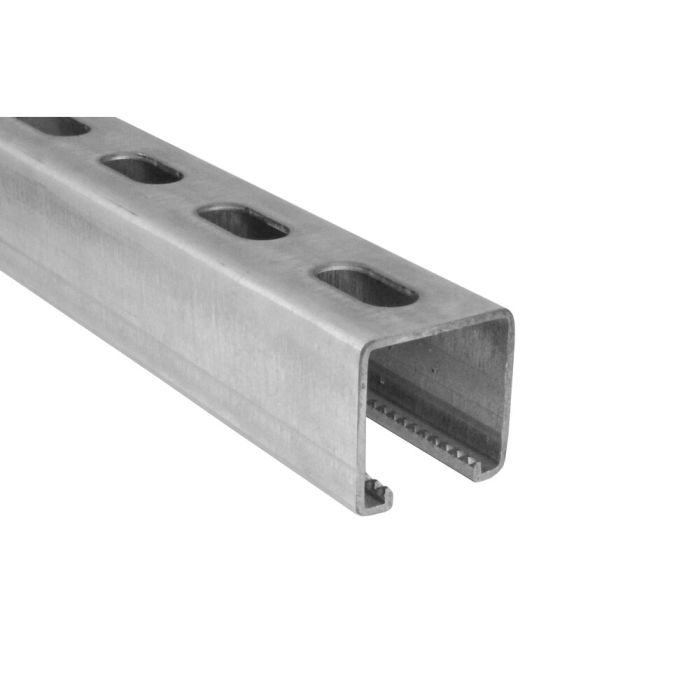

MEZ-DUCTSUPPORT MS 41/41/2,0

Sturdy 41 x 41 mounting rail for air duct installation

The MEZ-DUCTSUPPORT MS 41/41/2.0 is a robust 41 x 41 mounting rail for professional fixing and support structures in ventilation and building services engineering. The tried-and-tested MS profile type combines high load-bearing capacity with a cost-effective design, providing the basis for safe and durable air duct installation.

When installing air ducts, robust fixing solutions are crucial. The galv. steel construction offers the necessary stability for a variety of installation scenarios and can be easily combined with suitable system components.

Technical highlights

• Profile type MS
• Dimensions: 41 × 41 mm
• Material thickness: 2.0 mm
• Length: 3 m
• Weight: approx. 1.97 kg/m
• Cross-sectional area: 2.43 cm²
• Permissible point load capacity up to 4.0 kN
• High bending and load-bearing strength
• Compatible with a wide range of system accessories



Key features

• High stability for secure supporting structures
• Corrosion-protected design for a long service life
• Versatile use in ventilation and building services applications
• Flexible expansion through suitable accessories
• Cost-effective solution for new and existing installations



Additional features

• Reduces the variety of variants required for procurement
• Supports consistent system planning
• Facilitates maintenance, expansion and conversion work
• Ensures a permanently reliable fastening
• Manufactured from high-quality steel with superior material properties



Installation

• Quick integration into existing support systems
• Flexible adaptation to different installation situations
• Suitable for cross-beams, suspensions and substructures
• Good accessibility during installation and servicing
• Easy to combine with compatible system components



Why is this MS profile type right for you?

The MEZ-DUCTSUPPORT MS 41/41/2.0 offers a reliable solution for professional fixing tasks in the ventilation and building services sectors. High load-bearing capacity, simple system integration and the galv. finish make it a cost-effective choice for purchasers, fitters and operators alike.

Application scenarios

• Air duct installation in commercial and industrial buildings
• Suspension of ventilation ducts
• Support systems in plant engineering
• Fixing of ventilation components
• Cross-beams and substructures
• Extension of existing building services installations




All information is provided without guarantee. Technical specifications, illustrations, and prices are subject to change and are non-binding. Errors excepted.
