MEZ-ELL

Secure and easy suspension of rectangular air ducts

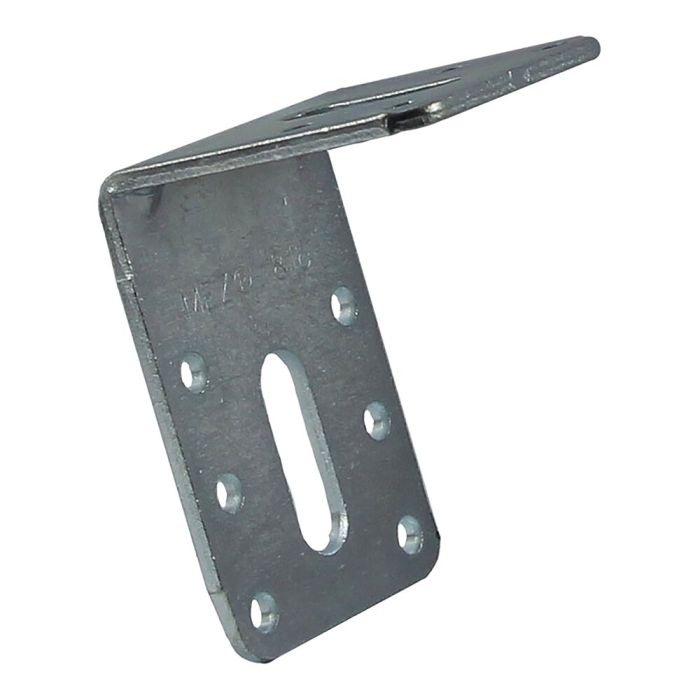

The MEZ-ELL – TYPE 40 without insulation section is an air duct bracket for rectangular air ducts. It is fitted directly beneath the ceiling and ensures secure suspension. The galv. steel construction is robust and designed for long-term use. With a load-bearing capacity of up to 0.50 kN, the bracket is suitable for many applications in ventilation and plant engineering.

On the construction site, quick and precise installation is essential. At the same time, air ducts must be securely fastened for the long term. The Type 40 air duct bracket meets both these requirements. When used in conjunction with threaded rods, the air duct can be easily aligned and adjusted to the desired height. This saves time during installation and makes it easier to position the duct accurately.

Technical highlights

• Suspension bracket without insulation
• For rectangular air ducts
• Installation directly beneath the ceiling
• Material: galv. steel
• Load-bearing capacity up to 0.50 kN
• Mounting for M8 threaded rods
• Height adjustment via threaded rods
• Fixing with rivets, self-tapping screws or metric screws
• Direct installation onto the building structure is possible



Key features

• Secure suspension of air ducts
• Quick and easy installation
• Flexible adjustment of installation height
• High stability in daily use
• Corrosion protection thanks to a galv. surface
• Reduced effort for maintenance and rework
• Suitable for new builds, conversions and refurbishments



Additional features

• Simplifies planning thanks to defined load values
• Supports cost-effective installation concepts
• Ensures reliable fastening for many years
• Reduces the effort required for subsequent adjustments
• Versatile use in ventilation and building services projects
• Ideal as a ventilation installation accessory



Installation

• Quick integration into existing systems
• Direct fixing to the building structure
• Flexible installation for a variety of fitting situations
• Simple height adjustment using threaded rods
• Reduced installation time on site
• Neat and organised installation



Why is this air duct bracket right for you?

The MEZ-ELL – TYPE 40 offers a simple and reliable solution for suspending rectangular air ducts. The robust design made from galvanized steel, the load-bearing capacity of 0.50 kN and the flexible height adjustment ensure reliable results in day-to-day work. Purchasers benefit from a long-lasting solution. Fitters save time during installation. Operators benefit from a permanently stable air duct mounting.

Application scenarios

• Commercial buildings
• Industrial and production halls
• Office buildings
• Hospitals
• Public buildings
• Shopping centres
• Logistics centres
• New-build projects
• Refurbishments and modernisations
• Air duct installation



All information is provided without guarantee. Technical specifications, illustrations, and prices are subject to change and are non-binding. Errors excepted.
