MEZ-LATZ - AISI304

Maximum connection reliability for stable air duct joints

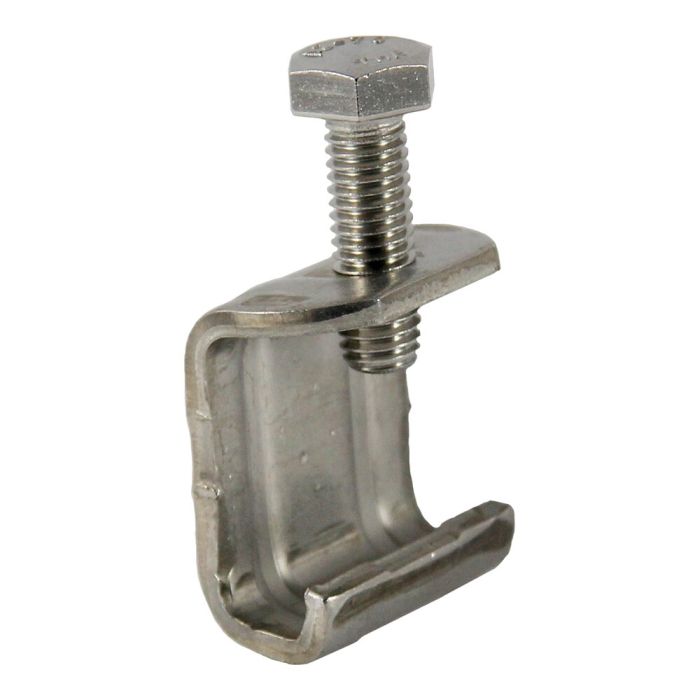

The MEZ-LATZ 506E – M3 mm – AISI 304 offers a robust, reliable solution. Designed as a high-quality air duct clamp, it ensures a permanently secure air duct connection for Systems 20, 30 and 40. The AISI 304 stainless steel construction, the 3.0 mm material thickness and the sturdy ribbing across the bend ensure maximum rigidity. This is ideal for high-pressure systems, demanding installation conditions and everyday industrial use.

Thanks to the well-thought-out hook design, the air duct clamp can be easily hooked onto the bead of the flange profile, tilted over the opposite profile and then securely tightened. The result is a precise, profile-specific press fit, a stable connection and minimised installation effort.

In practice, fitters and manufacturers frequently face the same problem: air ducts must be connected to one another quickly, reliably and with a permanent seal. This presents a particular challenge with longer edge lengths and high pressure levels. Standard duct clamps often offer insufficient stability in such cases or cannot be fitted neatly.

Technical highlights

• Material: AISI 304 stainless steel
• Screw: M8 x 25
• Product dimensions: A = 35 mm, B = 20 mm, C = 17 mm, D = 23 mm
• Systems: 20, 30 & 40
• Max. load: 1.8 kN
• Packaging unit: 100 pieces
• For connecting rectangular air ducts
• Enhanced stability thanks to double ribbing
• Also suitable for large duct cross-sections and high pressure conditions

Key features

• 3.0 mm material thickness for high stability
• Universally applicable air duct clamp
• Secure clamping of flange profiles without deformation
• Quick installation suitable for both workshops and construction sites

Additional features

• High ‘Made in Germany’ quality ensures long-term supply reliability
• Galvanized steel and optimum material thickness reduce complaints and rework
• Less variant management in procurement thanks to universal applicability
• Durability thanks to robust galvanisation
• Secure hold even after years of use, facilitating inspections and maintenance
• Minimised risk of leaks or profile cuts

Installation

• Quick, intuitive installation with no risk of profile deformation
• Firm clamping pressure (up to 1.8 kN) for airtight ducts even at high pressure
• Standardised M8 x 25 screws simplify site logistics

Why is this air duct clamp right for you?

The MEZ-LATZ 506E air duct clamp is the ideal choice for businesses that prioritise reliable connections, simple installation and long-lasting quality in air duct construction. A small component with a major impact on stability, airtightness and project success.

Application scenarios

• Connecting air ducts with system profiles 20, 30 & 40
• Installation of air ducts with edge lengths from 500 mm
• Use in high-pressure ventilation systems
• Manufacturing processes in air duct production
• Service and maintenance operations to secure connections


All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding
