MEZ-LATZ Joining element

The alternative ventilation clamp for secure air duct connections

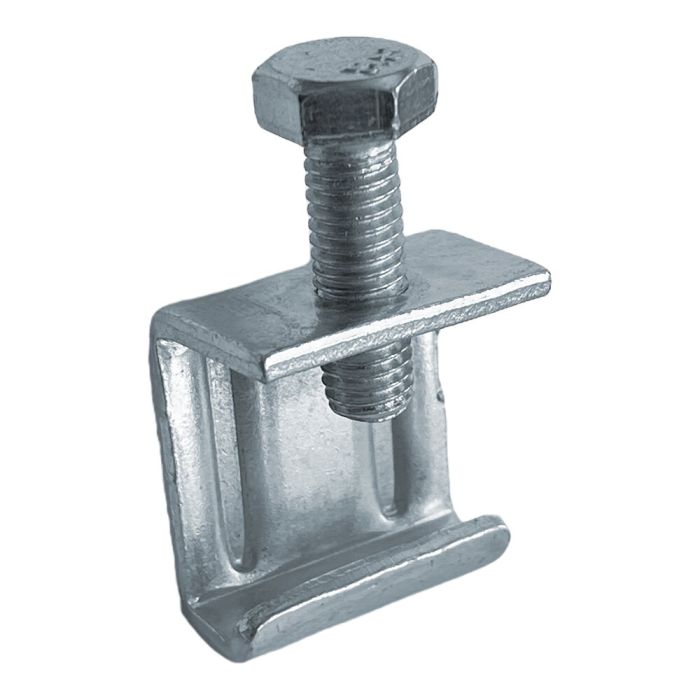

The MEZ-LATZ 507 – 2.5 mm – galv. offers a robust, reliable solution. Designed as a high-quality air duct clamp, it ensures a permanently secure air duct connection for Systems 20 & 30. The galv. finish, the 2.5 mm material thickness and the sturdy ribbing along the bend ensure maximum rigidity. This is ideal for high-pressure systems, demanding installation conditions and everyday industrial use.

Thanks to the well-thought-out hook design, the air duct clamp can be easily hooked onto the bead of the flange profile, tilted over the opposite profile and then securely tightened. The result is a precise, profile-matched fit, a stable connection and minimised installation effort.

In practice, fitters and manufacturers often face the same problem: air ducts must be connected to one another quickly, reliably and with a permanent seal. This poses a particular challenge with longer edge lengths and high pressure levels. Standard duct clamps often offer insufficient stability or cannot be fitted neatly.

Technical highlights

• Material: Galv. steel
• Screw: M8 x 25 mm
• Product dimensions: A = 35 mm, B = 20 mm, C = 17 mm, D = 23 mm
• Systems: 20 & 30
• Max. load: 1.3 kN
• Packaging unit: 100 pieces
• For connecting rectangular air ducts
• Increased stability thanks to double ribbing
• Also suitable for large duct cross-sections and high pressure conditions

Key features

• Galvanized steel, which is corrosion-resistant and durable
• Universally applicable air duct clamp
• Secure clamping of the flange profiles without deformation
• Quick installation, suitable for both workshops and construction sites

Additional features

• Galvanized steel and optimal material thickness reduce complaints and rework
• Less variant management in procurement thanks to universal applicability
• Durability thanks to robust galvanisation
• Secure hold even after years of use, facilitating inspections and maintenance
• Minimised risk of leaks or profile cuts

Installation

• Quick, intuitive installation with no risk of profile deformation
• Firm clamping pressure (up to 1.8 kN) for airtight ducts even under high pressure
• Standardised M8 x 25 mm screws simplify site logistics

Why is this air duct clamp right for you?

The MEZ-LATZ 507 air duct clamp is the ideal choice for businesses that prioritise reliable connections, simple installation and long-lasting quality in air duct construction. A small component with a major impact on stability, airtightness and project success.

Application scenarios

• Connecting air ducts with system profiles 20 & 30
• Installation of air ducts with edge lengths from 500 mm
• Use in high-pressure ventilation systems
• Manufacturing processes in air duct production
• Service and maintenance operations to secure connections
