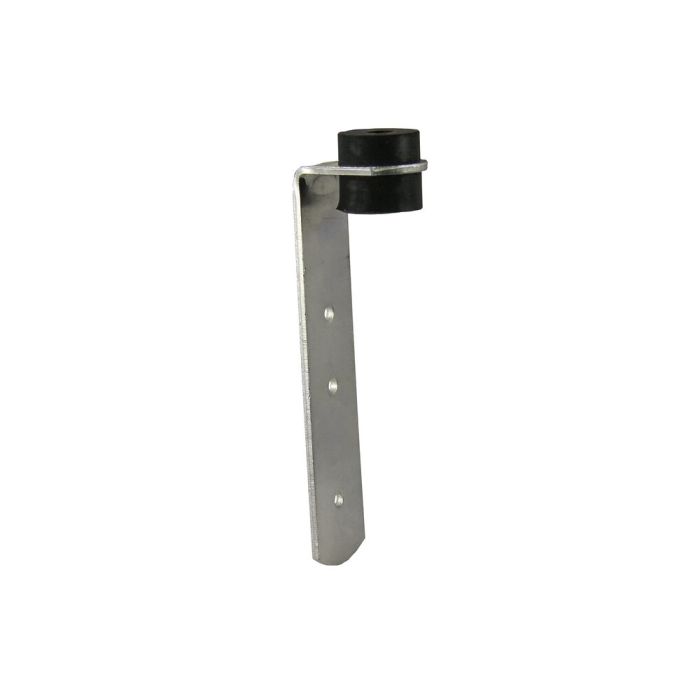

MEZ-MONTAGEBÜGEL MB 15

Mounting bracket for the sound-insulated suspension of rectangular air ducts up to 0.30 kN, M8, galv.
Article number
818MB15
Loading...
Your price:
MEZ-MONTAGEBÜGEL MB 15 is available to buy in increments of 200

Sound-insulated mounting bracket for rectangular air ducts



The MEZ MB 15 mounting bracket has been developed for the secure mounting of rectangular air ducts. The integrated rubber mushroom and the insulation element with a vulcanised disc effectively reduce structure-borne noise and vibrations. This makes the mounting bracket particularly suitable for ventilation systems where sound-insulated fixing is required.

The galv. steel construction ensures high stability and reliable corrosion protection. At the same time, the mounting bracket allows for easy alignment and height adjustment using M8 threaded rods. In addition to standard duct suspension, direct fixing to the building structure or ceiling is also possible.



Technical Highlights

  • Sound-insulated design with rubber mushroom pad
  • M8 connection for threaded rods
  • Manufactured from galvanized steel
  • Insulation element with vulcanised disc
  • Maximum load capacity 0.300 kN
  • Suitable for rectangular air ducts



Key Features

  • Reduces vibrations and structure-borne noise
  • Secure suspension of rectangular air ducts
  • Simple height adjustment via threaded rods
  • Direct ceiling mounting possible
  • Corrosion-protected design



Additional features

  • Improves the acoustic comfort of the system
  • Suitable for new installations and retrofits
  • Durable construction for continuous use
  • Simple and cost-effective installation
  • A professional solution for ventilation systems



Installation

  • Mounting on the air duct using rivets (5.0 mm) or self-tapping screws (4.8 mm)
  • Direct fixing to the building structure possible
  • Alignment and height adjustment via M8 threaded rods
  • Ensure the connection is secure
  • Take the load-bearing capacity into account according to the application



Why is this mounting bracket right for you?

The mounting bracket is the ideal solution for the sound-insulated suspension of rectangular air ducts. The combination of a sturdy mounting bracket, an integrated damping element and a rubber mushroom seal ensures an effective reduction in vibrations and noise transmission. At the same time, the simple installation enables a cost-effective and durable fixing solution in ventilation and plant engineering.



Application scenarios

  • Rectangular air ducts
  • Ventilation systems
  • Air conditioning systems
  • Building services equipment
  • Industrial and commercial facilities
  • Acoustically decoupled duct suspensions
  • Ceiling and wall installations







All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
