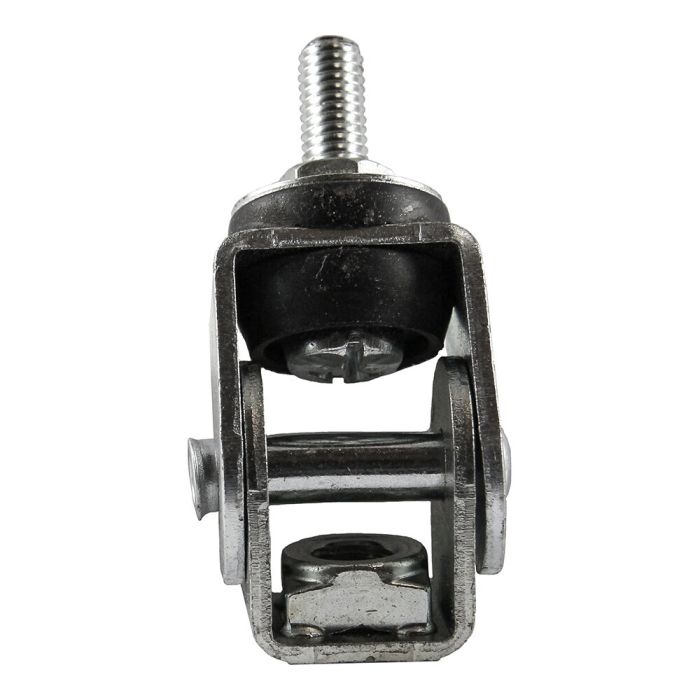

MEZ-PENDEL - M12/M12

Swing element without sound insulation for the flexible mounting of pipelines subject to axial sliding movements.
Article number
862/07
Loading...
Your price:
MEZ-PENDEL - M12/M12 is available to buy in increments of 50

Flexible mounting for pipelines



The MEZ-PENDEL M12/M12 without sound insulation is a flexible mounting element designed to accommodate axial sliding movements in pipelines. Its pendulum-style design allows pipeline movements to be compensated for, thereby preventing uncontrolled tensile forces on the pipeline mounting.

The axial pendulum movement also provides lateral guidance for the pipeline. This version is suitable for M12 and M12 connections, thereby enabling flexible integration into various fixing systems.



Technical Highlights

  • Movable fixing element for pipelines
  • M12/M12 connection threads
  • Accommodates axial sliding movements
  • Lateral pipeline guidance via axial oscillation
  • Suitable for pipelines subject to movement



Key Features

  • Reduces uncontrolled tensile forces on the pipeline fixing
  • Allows for axial movements of the pipeline
  • Supports secure lateral pipeline guidance
  • Flexible integration into various mounting structures
  • Suitable for professional pipe fixings



Additional features

  • Suitable for pipelines subject to movement
  • Supports low-stress pipeline installation
  • Flexible integration into various mounting systems
  • Suitable for professional pipe fixing systems
  • Robust solution for long-term use



Installation

  • Secure the pendulum element to the designated suspension point
  • Make a suitable M12 or M12 connection
  • Secure the pipeline with a suitable clamp
  • Align the pendulum direction in accordance with the axial movement of the pipeline
  • After installation, check for freedom of movement and a secure fit



Why is this pendulum element suitable for you?

This suspension element is the ideal solution for pipelines where axial movement needs to be accommodated. The flexible design reduces unwanted tensile forces on the fixing whilst simultaneously supporting the lateral guidance of the pipeline. This makes the fixing element suitable for professional applications in building services engineering.



Application scenarios

  • Pipe suspensions
  • Heating systems
  • Sanitary installations
  • Air conditioning and ventilation systems
  • Building services
  • Pipelines with axial movement
  • Professional pipe fixings





All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
