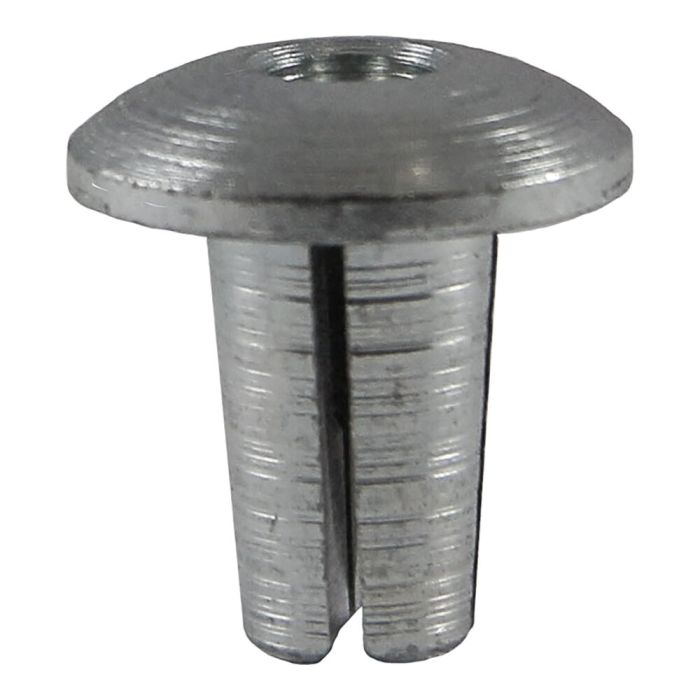

MEZ-PILZ – Robust baffle plate fastening for high mechanical loads
The MEZ-PILZ is a specially developed fastener designed for the reliable fastening of baffle plates in air ducts and air handling units. Thanks to its form-fit and force-fit connection, it ensures a permanently stable fastening of baffle and partition plates—even under high pressure loads.
In practice, problems such as loose fasteners or insufficient holding force often arise. The MEZ-PILZ 300 addresses these challenges with defined pull-out values and a robust, galv. steel construction.
Technical Highlights
- Fastener for baffle plate and partition plate mounting
- Heat-resistant up to 400°C
- Suitable for sheet thicknesses of 0.40 – 0.90 mm
- Material: Steel, galv.
- High mechanical load capacity with tested pull-out values
- High safety under pressure loads in the air duct
- Compatible with centering drill bits for precise placement
Key Features
- High holding force for permanently stable connections
- Secure fastening even under pressure loads
- Cost-effective due to galvanized steel construction
- Reduced sources of error in manufacturing and installation
- Process reliability through standardized application
Additional features
- Clear performance values and robust design ensure planning reliability and reduce complaints
- Long-term stability minimizes rework and increases the operational reliability of the system
Installation
- Precise work through the use of a centering drill bit
- Fast and repeatable installation
- Secure fit in the sheet metal without additional tools
- Efficient use in manufacturing and on the construction site
Why is this baffle plate fastener right for you
The MEZ-PILZ is the optimal solution for applications requiring a mechanically robust baffle plate fastening. It combines high stability, easy processing, and cost-effectiveness—ideal for standardized use in ventilation and plant engineering.
Application scenarios
- Baffle plate fastening in rectangular air ducts
- Fastening of baffle plates in HVAC systems
- Mass production of air duct components
- Use under defined pressure loads
- Maintenance and retrofitting of existing systems
