MEZ-PILZ

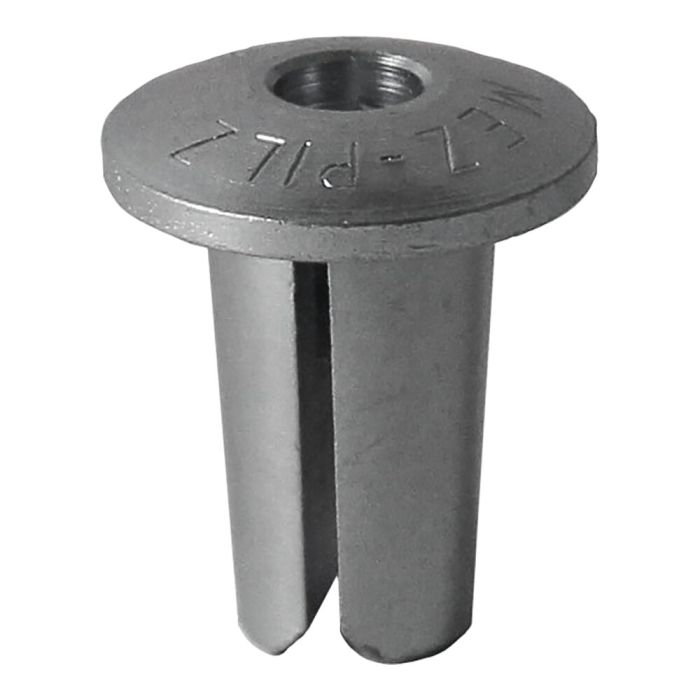

MEZ-PILZ – Heavy-duty baffle plate fastener for thicker sheet metal

The MEZ-PILZ is a particularly robust baffle plate fastener designed for applications involving thicker materials and higher mechanical demands in air duct construction. Made of galvanized steel, this fastener ensures a permanently stable and durable attachment of baffle and divider plates.

In practice, standard solutions often reach their limits with thicker sheets—whether due to insufficient holding force or complex installation steps. The MEZ-PILZ was developed specifically for these requirements and offers a safe, cost-effective solution.

Technical Highlights

• Fastener for baffle plate mounting and partition plates
• Heat-resistant up to 400°C
• Suitable for sheet thicknesses of 1.25 – 1.75 mm
• Material: Steel, galv.
• High pull-out values for heavy mechanical loads
• Robust construction for larger duct dimensions
• Can be used with a matching centering drill bit for precise drilling
• Key Features
• High holding force, especially for thicker sheets
• Reliable connection even under increased pressure loads
• Corrosion-protected by galv. surface
• Reduced installation issues in demanding applications
• High process reliability in manufacturing and assembly

Additional Features

• Clear classification for thicker sheet thicknesses reduces ordering errors and ensures optimal material selection
• Long-term stability minimizes maintenance requirements and extends the service life of the baffle plate fastening

Installation

• Precise placement possible with centering drill bit
• Secure and repeatable installation in thicker materials
• Stable hold without additional fasteners
• Efficient use in series production and on the construction site

Why is this baffle plate fastening right for you

The MEZ-PILZ is the optimal choice for applications where thicker sheet metal and higher loads require a particularly robust baffle plate fastener. It provides the necessary safety, reduces installation effort, and ensures stable connections—even under demanding conditions in ventilation and plant engineering.

Application scenarios

• Baffle plate fastening in air ducts with thicker walls
• Mounting of baffle plates in high-load HVAC systems
• Mass production of stable air duct systems
• Industrial applications with increased pressure requirements
• Maintenance and retrofitting of robust ventilation systems
