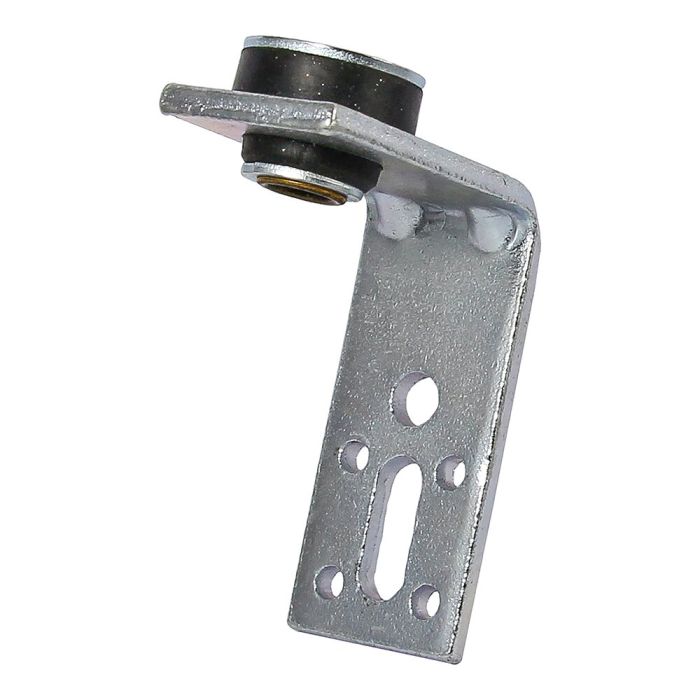

MEZ-SWINGELL SK - M10

Air duct hanger for rectangular riser ducts, noise- and vibration-isolating
Article number
814S
Loading...
Your price:
MEZ-SWINGELL SK - M10 is available to buy in increments of 100

Vibration-isolated mounting for riser ducts and low-vibration air duct installation



The MEZ-SWINGELL SK-M10 has been specially developed for the vibration-dampened mounting of riser ducts and rectangular air duct systems. The air duct bracket consists of a sturdy steel structure and a built-in damper. This component holds the air duct securely in place. At the same time, the damper absorbs noise and vibrations. In this way, the bracket prevents the transmission of sound to the building.

Particularly in the case of vertically routed air ducts, vibrations and noise can be transmitted via the fixing elements to adjacent components. The MEZ-SWINGELL SK-M10 reduces this sound transmission and thus contributes to improved system acoustics. At the same time, the robust construction ensures reliable load-bearing and secure guidance of the air duct.

The M10 connection links the bracket directly to threaded rods. The component facilitates installation on wall brackets and in ducts for pipework.



Technical highlights

  • Made from galvanized steel
  • Integrated damping element
  • M10 connection for threaded rods
  • Maximum load capacity 400 N
  • Material thickness 5 mm
  • Suitable for riser ducts and rectangular air ducts



Key features

  • Effective reduction of vibrations and structure-borne noise
  • Sound-insulating mounting thanks to integrated damping
  • Secure suspension of vertical air ducts
  • Simple installation using M10 threaded rods
  • High stability combined with a compact design



Additional features

  • Reduces sound transmission to adjacent components
  • Extends the service life of the air duct system
  • Suitable for plant rooms and riser shafts
  • Corrosion-protected design made from galvanized steel
  • Professional solution for ventilation and air conditioning systems



Installation

  • Installation on wall brackets or suitable fixing points
  • Connection via M10 threaded rods
  • Align and secure the air duct
  • The damping element provides vibration decoupling
  • Check that the fixing is secure



Why is this air duct bracket right for you?

The MEZ-SWINGELL SK-M10 securely fastens riser ducts and rectangular air ducts. The component reliably supports heavy loads. At the same time, it dampens vibrations and reduces noise within the building. This solution provides a stable hold and effectively protects against sound. The combination of a robust steel construction and an integrated damping element ensures durable, trouble-free and professional air duct installation.



Application scenarios

  • Riser ducts in buildings
  • Vertical air ducts
  • Technical centres
  • Ventilation systems
  • Air conditioning systems
  • Sound-insulated air duct installation
  • Industrial and commercial facilities
  • Building services (TGA)
