MEZ-SWINGTRAVAU - M10

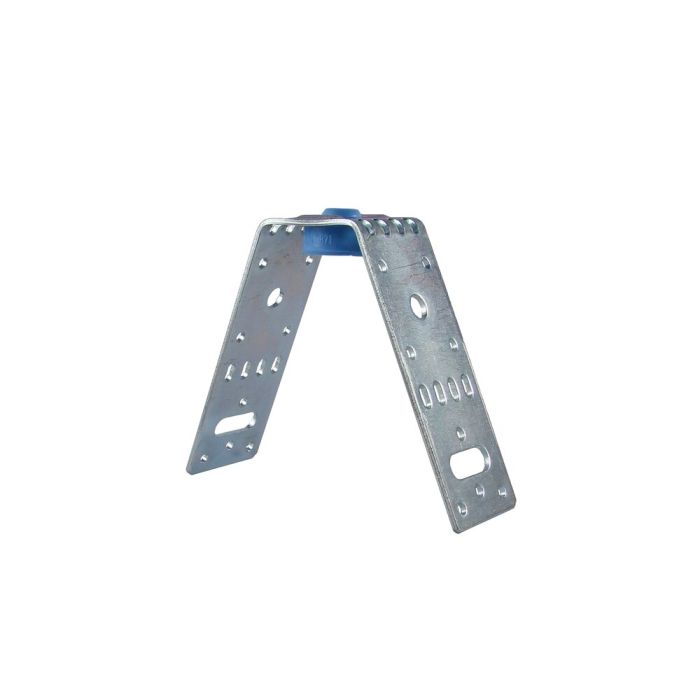

Suspension bracket for vibration-damping mounting on trapezoidal sheet metal ceilings. Galv. M10
Article number
822S
Loading...
Your price:
MEZ-SWINGTRAVAU - M10 is available to buy in increments of 50

Noise- and vibration-damping fixings for trapezoidal sheet metal ceilings



The MEZ-SWINGTRAVAU Type 40 M10 is a mounting element for suspending round and square components from trapezoidal sheet metal ceilings. Thanks to its integrated insulation component, the suspension element provides noise- and vibration-damping mounting and is suitable for professional applications in ventilation and plant engineering.

Thanks to the pre-defined bending point, the mounting element can be adapted to different trapezoidal sheet metal profiles. This allows the fixing to be flexibly tailored to the specific installation situation. Installation takes place on the lateral trapezoidal flanges, enabling a secure and practical suspension.



Technical highlights

  • M10 version
  • With integrated insulation insert
  • Suitable for round and rectangular components
  • For installation on trapezoidal sheet metal ceilings
  • Pre-defined bending point for easy adaptation
  • Noise- and vibration-damping design



Key features

  • Reduces noise and vibration transmission
  • Flexible adaptation to various trapezoidal sheet metal profiles
  • Suitable for round and rectangular air duct systems
  • Quick and easy installation
  • Professional solution for trapezoidal sheet metal ceilings



Additional features

  • Supports secure duct suspension
  • Adaptable to different installation situations
  • Integrated damping without an additional insulation element
  • Suitable for ventilation and air conditioning systems
  • Robust solution for professional use



Installation

  • Installation on the side flanges of the trapezoidal sheet
  • Fixing using sealing rivets or self-tapping screws
  • Adjust the mounting bracket to the trapezoidal sheet profile at the designated bend point
  • Securely fasten the M10 suspension
  • After installation, check that the structure is securely in place



Why is this suspension bracket suitable for you?

This suspension element is the ideal solution when installations need to be suspended from trapezoidal sheet metal ceilings in a way that is both secure and effective at dampening noise and vibrations. The integrated insulation component reduces the transmission of vibrations, whilst the pre-defined bend point allows for easy adaptation to different trapezoidal sheet metal profiles. This results in a flexible and easy-to-install mounting solution.



Application scenarios

  • Trapezoidal sheet metal ceilings
  • Circular air duct systems
  • Rectangular air duct systems
  • Ventilation and air conditioning systems
  • Building services equipment
  • Industrial and commercial facilities
  • Noise- and vibration-dampening suspensions





All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
