MEZ-TRASAT - M8
Sturdy mounting for ventilation pipes and air distribution systems close to the ceiling

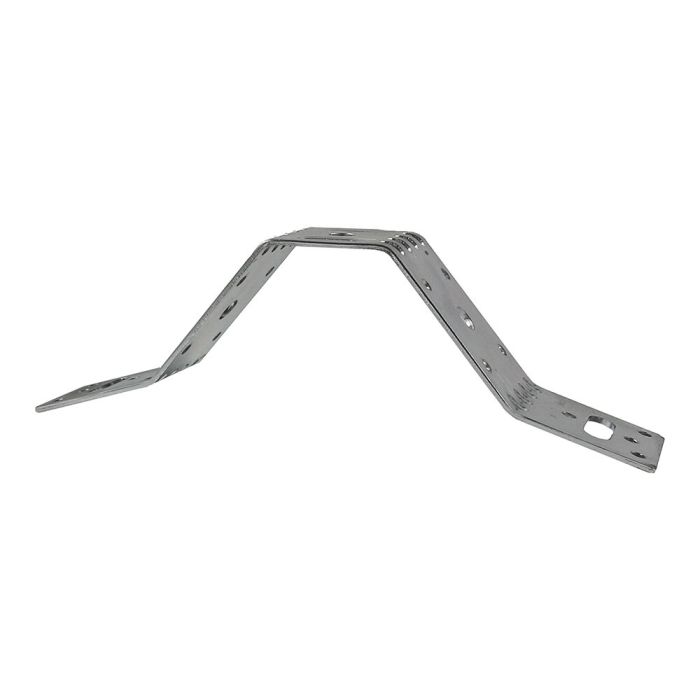

The MEZ-TRASAT Type 40 is a mounting bracket for securing installations to round and rectangular air distribution systems. Its design makes it particularly suitable for the simple and neat installation of ventilation pipes close to the ceiling.
The unit is made of galvanized steel and is designed for an M8 connection. With a maximum load capacity of 2.0 kN, the mounting element offers a robust fixing solution for professional applications in ventilation and plant engineering.
Technical Highlights
- Mounting bracket for round and rectangular air duct systems
- M8 version
- Made from galvanized steel
- Maximum load capacity 2.0 kN
- Suitable for ventilation pipes close to the ceiling
- Robust design for professional installations
Key features
- Simple and neat installation
- Ideal for installations close to the ceiling
- Suitable for round and rectangular air duct systems
- High load-bearing capacity up to 2.0 kN
- Corrosion-protected design made from galvanized steel
Additional features
- Suitable for ventilation and air conditioning systems
- Versatile for use with various air duct systems
- Robust construction for long-term use
- Professional solution for air duct fixing
- Easy integration into existing mounting structures
Installation
- Position the mounting bracket according to the installation situation
- Adapt it to the shape of the air duct system
- Carry out the fixing correctly
- Use the M8 suspension bracket in accordance with the mounting structure
- Check for a secure fit after installation
Why is this mounting bracket suitable for you?
This mounting element is the ideal solution when round or rectangular air duct systems need to be installed securely and in a space-saving manner. The design enables simple and neat fixing, particularly for ventilation pipes routed close to the ceiling. The galvanized steel construction and maximum load capacity of 2.0 kN ensure a robust solution for professional ventilation installation.
Application scenarios
- Ventilation pipes close to the ceiling
- Round air duct systems
- Square air duct systems
- Ventilation and air conditioning systems
- Building services equipment
- Industrial and commercial facilities
- Air duct fixings
All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
| Part group | 190501 |
|---|---|
| Material | Galvanized steel |
| Filetage | M8 |
| Packaging unit | 100 St. |
