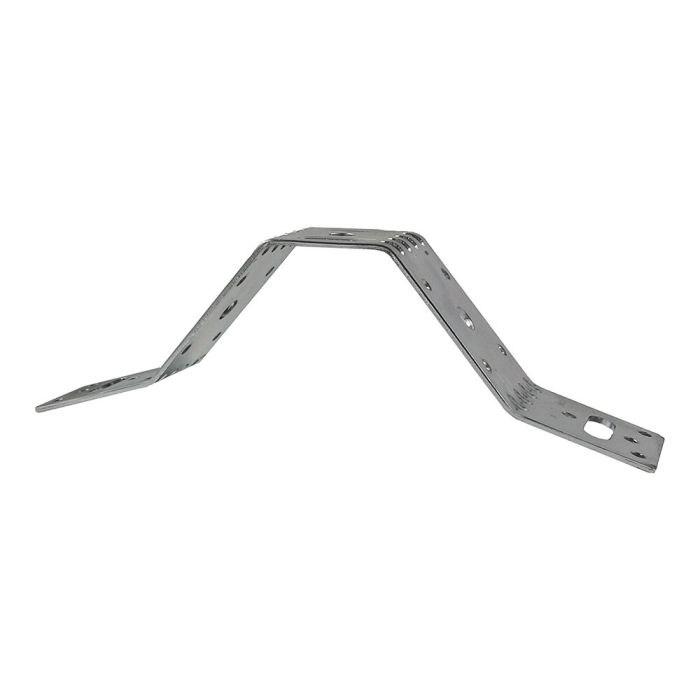

MEZ-TRASAT - M8 Universal

AISI 304 pipe mounting bracket for fixing air duct systems close to the ceiling, with a load capacity of up to 2.0 kN.
Available upon request
Article number
823E
Loading...
Your price:
MEZ-TRASAT - M8 Universal is available to buy in increments of 60

Sturdy mounting for ventilation pipes and air distribution systems close to the ceiling



The MEZ-TRASAT Type 40 is a mounting element for securing installations to round and rectangular air distribution systems. Its design makes it particularly suitable for the simple and neat installation of ventilation pipes close to the ceiling.

The unit is made from AISI 304 stainless steel and is designed for an M8 connection. With a maximum load capacity of 2.0 kN, the mounting element offers a robust fixing solution for professional applications in ventilation and plant engineering.



Technical Highlights

  • Mounting bracket for round and rectangular air duct systems
  • M8 version
  • Manufactured from AISI 304 stainless steel
  • Maximum load capacity 2.0 kN
  • Suitable for ventilation pipes close to the ceiling
  • Robust design for professional installations



Key Features

  • Simple and neat installation
  • Ideal for installations close to the ceiling
  • Suitable for round and rectangular air duct systems
  • High load-bearing capacity up to 2.0 kN
  • Corrosion-resistant design made from AISI 304 stainless steel



Additional features

  • Suitable for ventilation and air conditioning systems
  • Versatile for use with various air duct systems
  • Robust construction for long-term use
  • Professional solution for air duct fixing
  • Easy integration into existing mounting structures



Installation

  • Position the mounting element according to the installation situation
  • Adapt to the shape of the air duct system
  • Carry out the fixing correctly
  • Use the M8 suspension in accordance with the mounting structure
  • Check for a secure fit after installation



Why is this mounting element right for you?

This mounting element is the ideal solution when round or rectangular air duct systems need to be installed securely and in a space-saving manner. Particularly for ventilation pipes routed close to the ceiling, the design enables simple and neat fixing. The AISI 304 stainless steel construction and the maximum load capacity of 2.0 kN ensure a robust fixing solution for professional ventilation installation.



Application scenarios

  • Ventilation pipes close to the ceiling
  • Round air duct systems
  • Square air duct systems
  • Ventilation and air conditioning systems
  • Building services equipment
  • Industrial and commercial facilities
  • Air duct fixings





All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.

Features
Part group190501
MaterialV2A stainless steel
FiletageM8
Packaging unit100 St.
