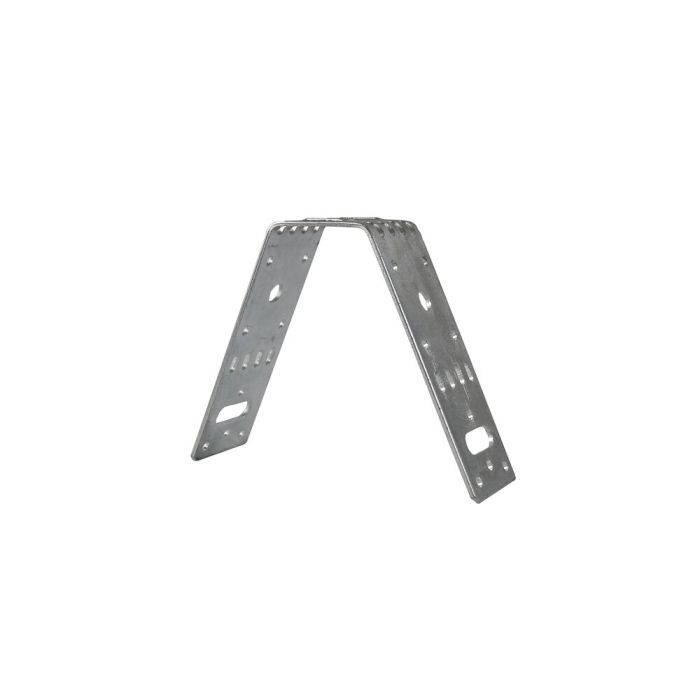

MEZ-TRAVAU - M10
Sturdy suspension system for round and square components on trapezoidal sheet metal ceilings
The MEZ-TRAVAU Type 40 M10 is a suspension element for fixing round and square components to trapezoidal sheet metal ceilings. Its design ensures secure and reliable suspension and is suitable for professional applications in ventilation and plant engineering.
Thanks to the pre-defined bending point, the suspension element can be easily adapted to different trapezoidal sheet metal profiles. This allows the fixing to be flexibly tailored to the specific installation situation.
It is mounted on the lateral trapezoidal webs. The M10 version allows integration into corresponding suspension structures and facilitates simple and installation-friendly fitting.
Technical Highlights
- M10 version
- Suspension element for round and rectangular components
- For fixing to trapezoidal sheet metal ceilings
- Pre-defined bend point for easy adjustment
- Suitable for various trapezoidal sheet metal profiles
- Robust design for professional installations
Key Features
- Flexible adaptation to various trapezoidal sheet metal profiles
- Secure suspension on the lateral trapezoidal flanges
- Suitable for round and rectangular air duct systems
- Quick and easy installation
- Versatile use in ventilation and plant engineering
Additional features at a glance
- Enables secure duct suspension
- Adaptable to different installation situations
- Suitable for professional ventilation systems
- Easy integration into existing suspension systems
- Robust solution for professional use
Installation
- Position the suspension element on the side trapezoidal ribs
- Secure using sealing rivets or self-tapping sheet metal screws
- Adjust the suspension element to the trapezoidal sheet metal profile at the designated bend point
- Secure the M10 suspension correctly
- After installation, check that the structure is securely in place
Why is this suspension element right for you?
This suspension element is the ideal solution for securely and flexibly suspending round or square components from trapezoidal sheet metal ceilings. The pre-defined bending point facilitates adaptation to different trapezoidal sheet metal profiles and enables quick and easy installation.
Application scenarios
- Trapezoidal sheet metal ceilings
- Circular air duct systems
- Rectangular air duct systems
- Ventilation and air conditioning systems
- Building services equipment
- Industrial and commercial facilities
- Duct suspensions
All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
| Part group | 190401 |
|---|---|
| Material | Galvanized steel |
| Filetage | M10 |
| Packaging unit | 100 St. |
