MEZ-WING - M8

Space-saving mounting of rectangular air duct systems

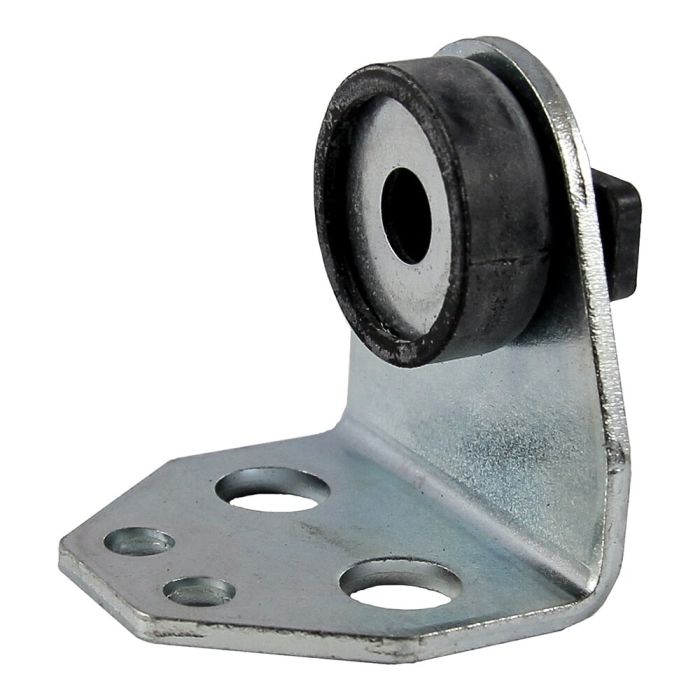

The MEZ-WING 887S has been developed for mounting rectangular air duct systems to flanged corner pieces. This design is particularly suitable for applications requiring noise- and vibration-free mounting. At the same time, its shape saves a great deal of space during installation.
Direct screw connection to the duct flange corner provides a secure and stable fixing solution for air duct systems. Particularly for installations close to the ceiling, this fixing element enables space-saving and cost-effective installation.

The galvanized steel construction provides reliable protection against rust. This material ensures a long service life in professional ventilation and plant engineering.

Technical Highlights

• Suitable for MEZ-FLANGE-SYSTEM 20
• Mounting element for rectangular air duct systems
• Noise- and vibration-dampening mounting
• Direct screw connection to the duct flange corner
• Suitable for installations close to the ceiling
• Made from galvanized steel
• Maximum load 0.30 kN

Key features

• Space-saving fixing solution
• Reduces air leakage by fixing to the corner screw
• Simple and clean installation
• Suitable for threaded bolts and threaded rods
• Corrosion-protected design made from galvanized steel

Additional features

• Optimised for rectangular air duct systems
• Additional screw connection possible if required
• Professional solution for ventilation installation
• High stability with a compact design
• Suitable for industrial and commercial applications

Installation

• Direct screw connection to the duct flange corner
• Installation using threaded bolts or threaded rods
• Additional screw connections possible if required
• Particularly suitable for installations close to the ceiling
• Check for a secure fit after installation

Why is this fastening element suitable for you?

The MEZ-WING 887S secures rectangular air duct systems safely and stably. This bracket is particularly well suited to compact constructions. The component reliably dampens vibrations, ensuring quiet operation. Fitters use the MEZ-WING 887S to install ducts securely and permanently. Direct fixing to the flange corner reduces the installation effort whilst enabling a space-saving installation. Particularly in confined installation situations, this fastening element offers an efficient and reliable alternative to conventional fastening solutions.

Application scenarios

• Rectangular air duct systems
• MEZ-FLANGE-SYSTEM 20
• Installations close to the ceiling
• Ventilation and air-conditioning systems
• Industrial and commercial facilities
• Fixing of air ducts
