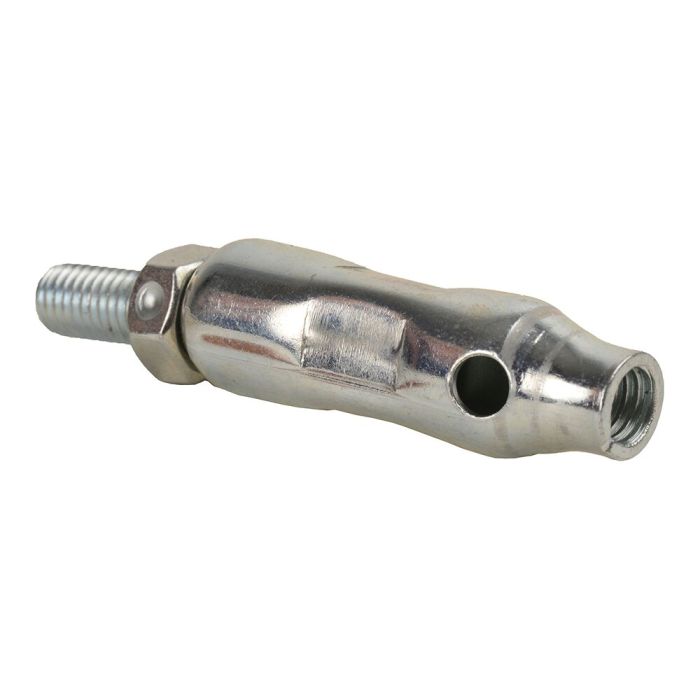

Pendulum hanger - long M10
Flexible suspension for pipelines subject to temperature-induced length changes
The PENDELHÄNGER long M10 is a suspension element for suspended pipelines that change length as a result of temperature fluctuations. Its flexible design allows it to accommodate small axial and radial movements of the pipelines.
The long version is made of galvanized steel and features an M10 threaded connection. With a height of 61 mm and a height adjustment range of 25 mm, the pendulum hanger allows for flexible adjustment during installation. The maximum deflection is 22°.
With a maximum load capacity of 2,400 N, the long version combines flexible pipe routing with a robust and flexibly adjustable suspension.
Technical highlights
- Long version with M8 threaded connection
- Made from galvanized steel
- Overall height 61 mm
- Height adjustment 25 mm
- Deflection: 22°
- Maximum load: 2,400 N
Key features
- Allows for small axial and radial pipe movements
- Accommodates temperature-induced changes in pipeline length
- Flexible height adjustment of 25 mm
- High load-bearing capacity
- Robust and corrosion-resistant design
Additional features
- Suitable for professional pipework suspension systems
- Supports flexible pipework routing
- Reduces rigid constraints during length changes
- Easy integration into mounting systems with M10 connections
- Durable design made from galvanized steel
Installation
- Attach the pendulum hanger to the designated suspension point
- Make the M10 connection correctly
- Connect the pipeline to the appropriate fastening element
- Adjust the height within a range of 25 mm in accordance with the installation requirements
- Ensure there is free axial and radial movement
Why is this suspension element suitable for you?
This suspension element is the ideal solution for suspended pipelines where small movements caused by temperature fluctuations need to be accommodated. The long version also allows for height adjustment of 25 mm, thereby facilitating precise alignment of the pipeline. With a deflection of 22° and a maximum load of 2,400 N, the suspension element offers a flexible and robust fixing solution.
Application scenarios
- Suspended pipelines
- Pipelines subject to temperature-induced length changes
- Heating systems
- Sanitary installations
- Air-conditioning and ventilation systems
- Building services equipment
- Pipelines with M10 connection
All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
