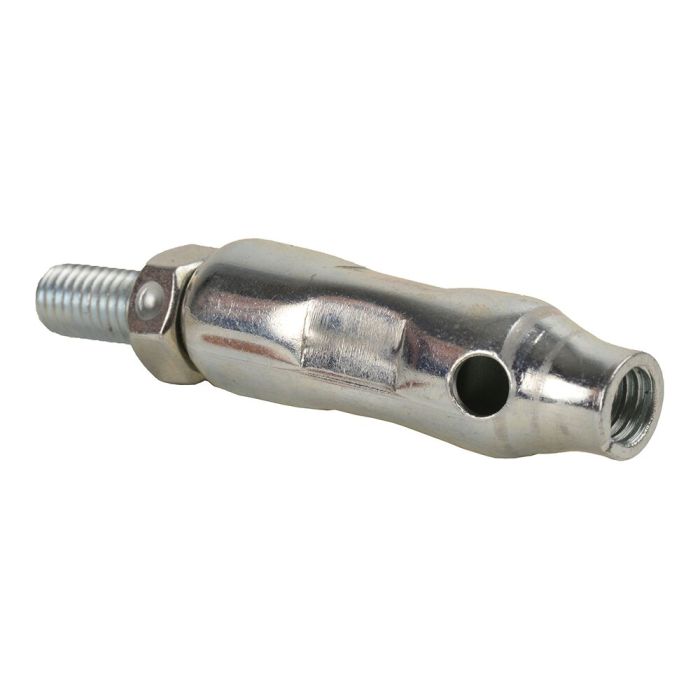

Pendulum hanger - long M8

Swing bracket for flexible pipe mounting with 25 mm height adjustment and a load capacity of 2,400 N; galvanized steel
Article number
864/6530
Loading...
Your price:
Pendulum hanger - long M8 is available to buy in increments of 50

Flexible suspension for pipelines subject to temperature-induced length changes



The PENDELHÄNGER long M8 is a suspension element for suspended pipelines that change length as a result of temperature fluctuations. Its flexible design allows it to accommodate small axial and radial movements of the pipelines.

The long version is made of galvanized steel and features an M8 threaded connection. With a height of 60 mm and a height adjustment range of 25 mm, the Pendulum Hanger allows for flexible adjustment during installation. The maximum deflection is 12°.

With a maximum load capacity of 2,400 N, the long version combines flexible pipe routing with a robust and flexibly adjustable suspension.



Technical highlights

  • Long version with M8 threaded connection
  • Made from galvanized steel
  • Height 60 mm
  • Height adjustment: 25 mm
  • Deflection: 12°
  • Maximum load: 2,400 N



Key features

  • Allows for small axial and radial pipe movements
  • Accommodates temperature-induced changes in pipeline length
  • Flexible height adjustment of 25 mm
  • High load-bearing capacity
  • Robust and corrosion-resistant design



Additional features

  • Suitable for professional pipework suspension systems
  • Supports flexible pipework routing
  • Reduces rigid constraints during length changes
  • Easy integration into mounting systems with an M8 connection
  • Durable design made from galvanized steel



Installation

  • Attach the pendulum hanger to the designated suspension point
  • Make the M8 connection correctly
  • Connect the pipeline to the appropriate fastening element
  • Adjust the height within a range of 25 mm in accordance with the installation requirements
  • Ensure there is free axial and radial movement



Why is this suspension element suitable for you?

This suspension element is the ideal solution for suspended pipelines where small movements resulting from temperature fluctuations need to be accommodated. The long version also allows for height adjustment of 25 mm, thereby facilitating precise alignment of the pipeline. With a deflection of 12° and a maximum load of 2,400 N, the suspension element offers a flexible and robust fixing solution.



Application scenarios

  • Suspended pipelines
  • Pipelines subject to temperature-induced length changes
  • Heating systems
  • Sanitary installations
  • Air-conditioning and ventilation systems
  • Building services equipment
  • Pipelines with M8 connection





All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
