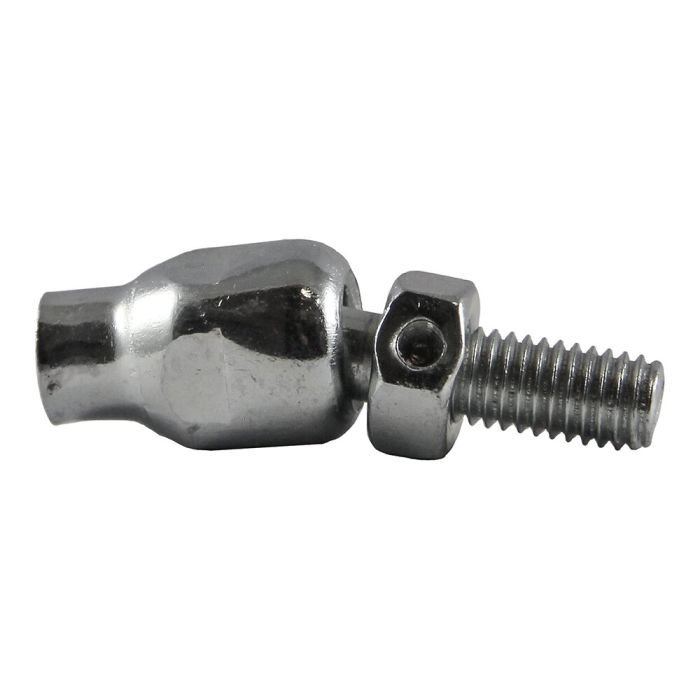

Pendulum hanger - short M8

Swing hangers for flexible pipelines, load capacity up to 2,400 N, galvanized steel
Article number
864/6510
Loading...
Your price:
Pendulum hanger - short M8 is available to buy in increments of 100

Flexible suspension for pipelines subject to temperature-induced length changes



The PENDELHÄNGER short M8 is a suspension element for suspended pipelines that change length as a result of temperature fluctuations. Its flexible design allows it to accommodate small axial and radial pipe movements, thereby supporting the pipe fixing during pipeline movement.

The short version is made of galvanized steel and features an M8 threaded connection. With a height of just 34 mm, the Pendulum Hanger is particularly suitable for installation situations where space is limited. The maximum deflection is 12°.

With a maximum load of 2,400 N, this compact design combines flexible pipework guidance with a robust fixing solution.



Technical highlights

  • Short version with M8 threaded connection
  • Manufactured from galvanized steel
  • Height 34 mm
  • Deflection up to 12°
  • Maximum load 2,400 N
  • Allows for small axial and radial pipe movements



Key features

  • Accommodates temperature-induced linear expansion of pipelines
  • Compact design for limited installation heights
  • Flexible suspension for small pipe movements
  • High load-bearing capacity despite compact design
  • Robust and corrosion-resistant construction



Additional features

  • Suitable for professional pipe suspension systems
  • Supports flexible pipe routing
  • Reduces rigid constraints at the pipe fixing point
  • Easy integration into mounting systems with an M8 connection
  • Durable design made from galvanized steel



Installation

  • Attach the pendulum hanger to the designated mounting point
  • Make the M8 connection correctly
  • Connect the pipeline to the appropriate fastening element
  • Ensure there is free axial and radial movement
  • Check for a secure fit after installation



Why is this suspension element suitable for you?

This suspension element is the ideal solution for suspended pipelines where minor movements caused by temperature fluctuations must be accommodated. The compact height of 34 mm allows for use in confined spaces, whilst the 12° deflection accommodates movements in the pipeline. With a maximum load capacity of 2,400 N, the short version also offers a robust fixing solution.



Application scenarios

  • Suspended pipelines
  • Pipelines subject to temperature-induced length changes
  • Heating systems
  • Sanitary installations
  • Air conditioning and ventilation systems
  • Building services equipment
  • Pipelines with M8 connection





All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
