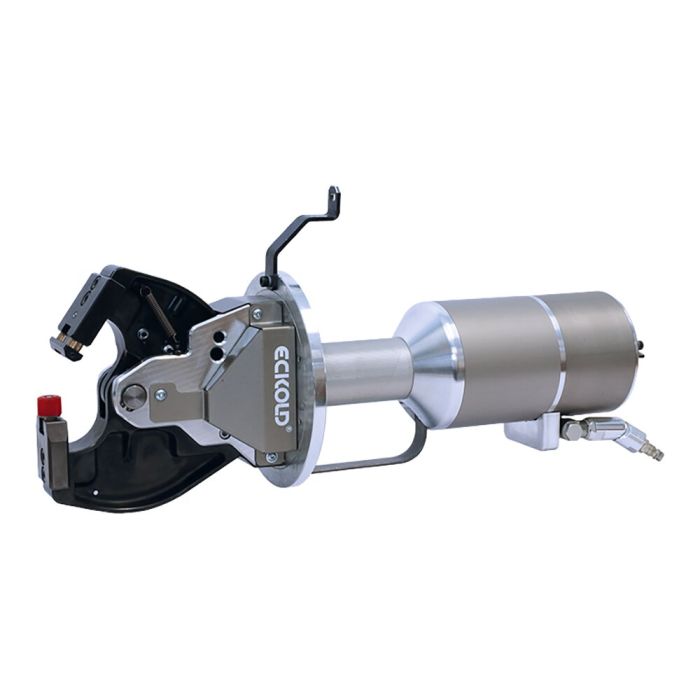

PNEUMATIC CLINCHING PLIER
PNEUMATIC CLINCHING PLIER | Pneumatic open/close | Pneumatic clinching | MZD45/35P-A
Article number
738000032104
PNEUMATIC CLINCHING PLIER is available to buy in increments of 1
Opening, closing and clinching all 100% pneumatic | Operating pressure : 6 bar | Air consumption : 5 litres / course | Max pressure force at the head : 35 kN | Thickness adjustment without tool disassembly | Cycle time : 2 seconds / stroke, or less | Horizontal projection 45 mm | Vertical projections top and bottom: 45 mm | Oening space : 32 mm | 6 mm between closed scrapers | One hand control | Tools to be ordered separately | Weight :approx. 10,4 kg (with tool carriers) | Dimensions (L x w x h) approx. 612 x 200 x 260 mm | To use on compressed air without water or oil !
| Gewicht | 10,5 kg |
|---|---|
| Blechdicke | S-DF 3.5 mm, R-DF 3.0 mm |
| Teilegruppe | 220304 |
| Verpackungseinheit | 1 St. |
