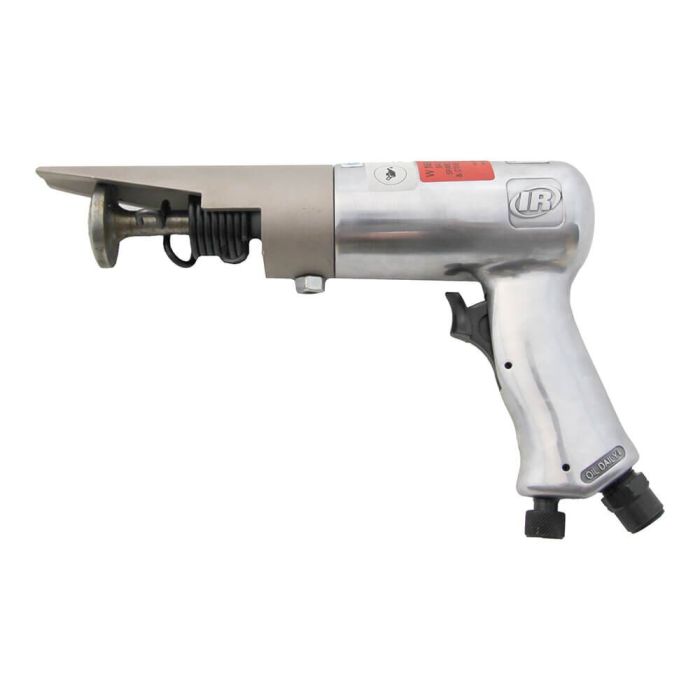

Pneumatic Pittsburgh folding hammer

for material thicknesses up to 1.2 mm

Article number

739/1

Pneumatic Pittsburgh folding hammer is available to buy in increments of 1

Description

FASTER FOLDING. CLEANER CLOSING.

Maximum impact force for precise seam joints. The Pittsburgh seam hammer is a powerful, pneumatically operated tool specially designed for the safe and efficient closing of Pittsburgh seams in sheet metal materials up to 1.2 mm (18swg) thick. Ideal for applications in ventilation and sheet metal working.

Product features:

Material thickness: up to 1.2 mm (18swg) for mild steel
Application: Closes Pittsburgh seams and thinner materials
Operating mode: Pneumatic
Impact frequency: 3,500 blows per minute (BPM)
Adjustable impact force: Controllable via trigger pressure – from gentle start to full power
Air pressure: 90 PSI (6.2 bar)
Air consumption: 3.0 CFM (approx. 85 l/min)
Air connection: 1/4" NPT
Hose diameter: 3/8" (10 mm)
Dimensions (L x W x H): 250 x 170 x 50 mm
Weight: 2.5 kg
Noise level: 104.4 dBA (sound pressure), 117.4 dBA (sound power)
Vibration: 4 m/s²

Notes:

The impact force can be finely adjusted using a regulator at the end of the handle.
The hammer must only be operated in contact with the workpiece.
Wear parts: Hammer springs and heads are consumables and must be replaced when necessary.
