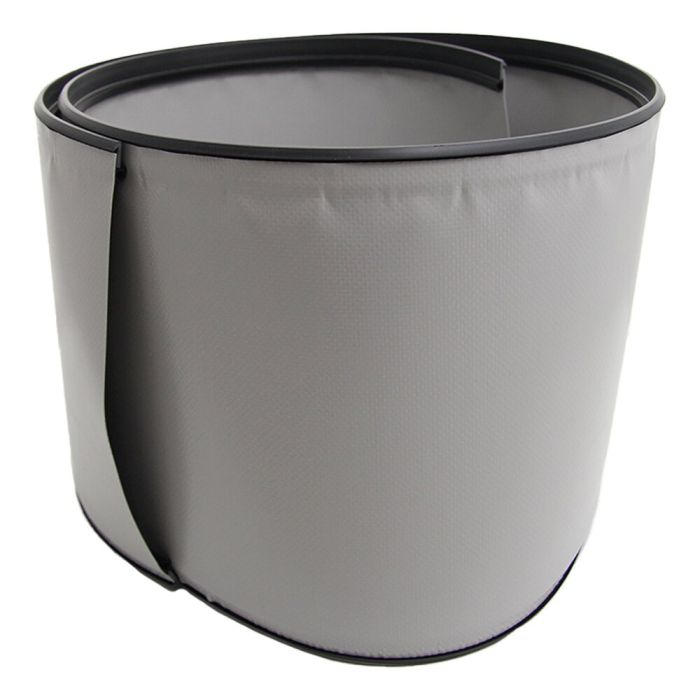

PVC BAND 155 mm

Flexible connection solution for use with fire dampers

The 155 mm PVC material with B2 beading profiles is used to create flexible connections and expansion joints in ventilation systems. When used in conjunction with suitable beading and profile systems, the tape enables the manufacture of elastic sleeves. These components isolate structure-borne noise and compensate for differences in length in ventilation and air conditioning systems.

The material consists of polyester fabric coated with PVC on both sides, featuring an integrated sealing lip, and has been specifically designed for use on fire dampers. Thanks to its high flexibility and reliable sealing properties, the tape is suitable for professional applications in ventilation, air-conditioning and plant engineering.

The PVC material is made from a robust material. It helps you to create durable and cost-effective flexible connections in ventilation systems. At the same time, the tape meets all the requirements of tightness class C.

Technical highlights

• Tape width 155 mm
• With beading profiles
• For use on fire dampers
• Polyester fabric coated with PVC on both sides
• With integrated sealing lip
• Tightness class C
• Pressure-resistant up to ± 1,500 Pa
• Temperature-resistant from -50 °C to +70 °C
• Fire behaviour in accordance with DIN 4102-1 B2

Key features

• Suitable for applications involving fire dampers
• High flexibility during installation
• Reliable airtightness
• Supports structure-borne sound decoupling
• Easy integration into air duct systems

Additional features

• Suitable for HVAC systems
• ReaCh-compliant and RoHS-compliant
• UV-resistant
• Silicone-, cadmium- and lead-free
• Durable material quality for professional use

Installation

• Insert the PVC material with the beading profiles into the designated air duct profiles
• Create a flexible spigot or expansion joint
• Install the connection without tension
• Ensure the sealing lip is correctly positioned
• Check the system for leaks upon completion

Why is this 155 mm PVC material with B2 beading profiles suitable for you?

The 155 mm PVC material with B2 beading profiles offers an ideal solution for flexible connections in ventilation and air conditioning systems. Professionals use this material particularly frequently in the context of fire dampers. The polyester fabric features a PVC coating and an integrated sealing lip. This combination, together with the B2 specification, guarantees a reliable and durable joint in professional plant engineering.

In addition, the tape improves sound insulation and compensates for movements and changes in length within the systems. The component thus ensures cost-effective operation of the ventilation system.

Application scenarios

• Fire dampers
• Flexible connectors in ventilation systems
• Compensators for air ducts
• HVAC systems
• Structure-borne sound isolation
• Length compensation in air duct systems
• Industrial and commercial installations

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
