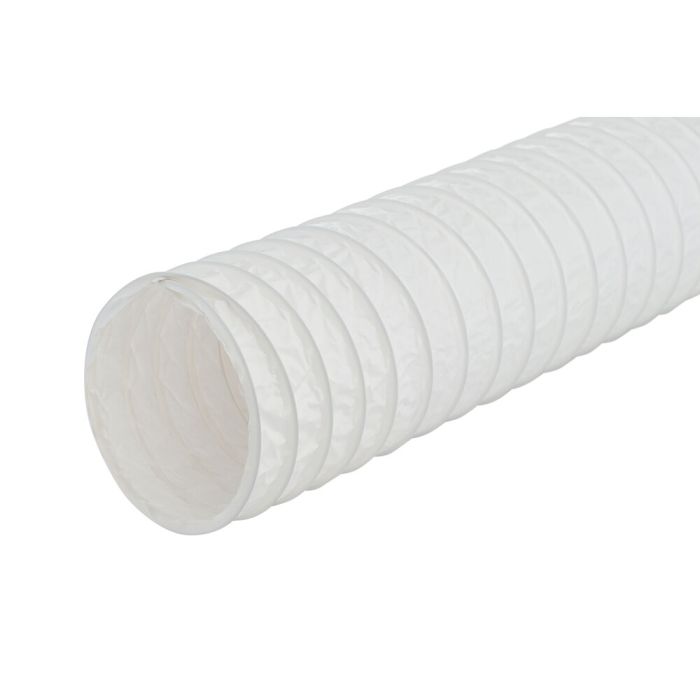

PVC-HOSE - Ø 102
-20 to +70°C, dia. 102 mm
Article number
1042/100
PVC-HOSE - Ø 102 is available to buy in increments of 1
Flexible hose made of polyvinyl chloride
Temperature range: -30 to +70°C
Max. operating pressure: +3.000 Pa
The PVC hose made of polyvinyl chloride is best suited for flexible installations. It can be easily attached to round and oval connections and has a standard length of 15 m. The maximum air speed is 30 m/s and it is designed for a maximum operating pressure of +3,000 Pa.
Applications
For mechanical ventilation systems
Air treatment installations
Venting/unloading of household appliances such as hoods or tumble dryers
Venting cabinets
Material structure
Number of layers: 1
Layers of PVC: 1
Wire spacing ø 82 mm: 25 mm
Wire spacing ø 102 - 315 mm: 36 mm
Optics: White
Technical details
Nominal diameter: 102 mm
Wire spacing: 25 mm
Temperature range: -30°C to +70°C
Max. operating pressure: +3.000 Pa
Max. air velocity: 30 m/s
Bending radius: min. 0,56 x ø
Standard length: 15 m
MEZ-STRETCHDEC-ALU hoses meet all requirements specified in EN 13180: "Ventilation of buildings - Air ducts - Dimensions and mechanical requirements for flexible air ducts".
Temperature range: -30 to +70°C
Max. operating pressure: +3.000 Pa
The PVC hose made of polyvinyl chloride is best suited for flexible installations. It can be easily attached to round and oval connections and has a standard length of 15 m. The maximum air speed is 30 m/s and it is designed for a maximum operating pressure of +3,000 Pa.
Applications
For mechanical ventilation systems
Air treatment installations
Venting/unloading of household appliances such as hoods or tumble dryers
Venting cabinets
Material structure
Number of layers: 1
Layers of PVC: 1
Wire spacing ø 82 mm: 25 mm
Wire spacing ø 102 - 315 mm: 36 mm
Optics: White
Technical details
Nominal diameter: 102 mm
Wire spacing: 25 mm
Temperature range: -30°C to +70°C
Max. operating pressure: +3.000 Pa
Max. air velocity: 30 m/s
Bending radius: min. 0,56 x ø
Standard length: 15 m
MEZ-STRETCHDEC-ALU hoses meet all requirements specified in EN 13180: "Ventilation of buildings - Air ducts - Dimensions and mechanical requirements for flexible air ducts".
