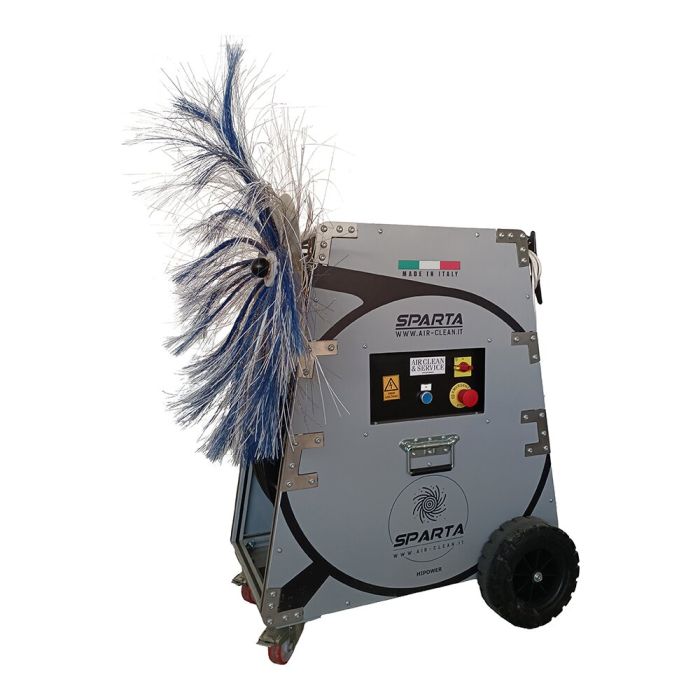

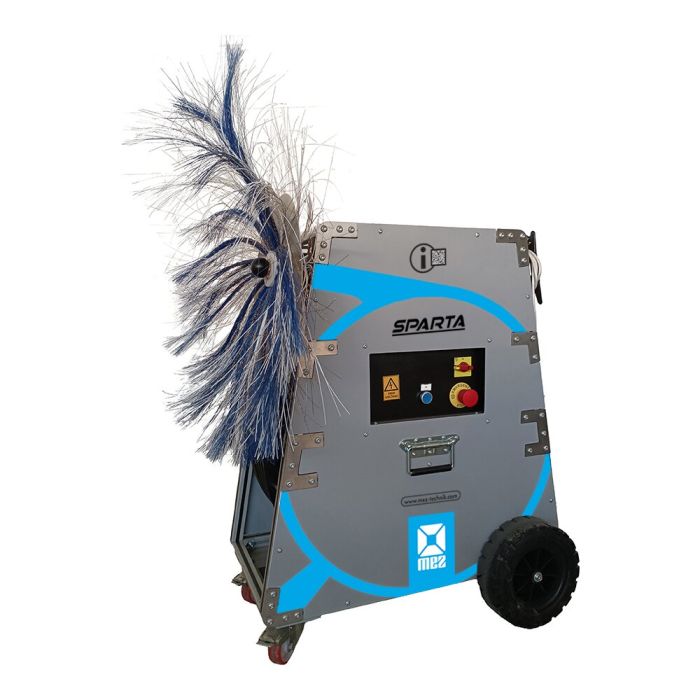

SPARTA 24 PLC cleaning machine

Maximum performance. Easy to use.

The SPARTA 24 PLC is a high-performance cleaning machine designed for the professional cleaning of ventilation and air duct systems. It is suitable for air ducts with diameters ranging from 100 to 800 mm and can be used in both round and rectangular ducts. Thanks to its lightweight aluminum housing, the machine is easy to transport and versatile in use. At the same time, the intelligent PLC control system enables automated cleaning sequences and supports efficient workflows.

A particular highlight is the tool-free quick-change system. The cleaning shaft simply clicks into place and can be changed in a matter of seconds. This saves you time and reduces the risk of damage to the shaft. Operation is convenient via the integrated display. Thanks to the automatic rotation direction change and the infinitely variable speed control, even bends and complex air duct systems can be cleaned reliably.

Technical highlights

• 12 mm cleaning shaft with glass fibre reinforcement
• 18 m shaft length
• Suitable for air ducts from 100 to 800 mm
• Suitable for round and rectangular ducts
• Stepless speed control from 120 to 550 rpm
• Automatic brush rotation with programmable time intervals
• Electronic PLC control for automated cleaning processes
• Tool-free quick-change system for the cleaning shaft
• Lightweight and robust aluminum housing
• IP65 protection class
• Integrated emergency stop switch
• Transport lock to prevent the shaft from rolling away unaided

Key features

• Quick shaft change without tools
• Simple operation via integrated control system
• Automated cleaning processes using PLC technology
• High flexibility for different duct geometries
• Particularly lightweight and easy to transport

Additional features

• Cleaning can be carried out by just one person
• Suitable for a wide variety of brush types and hardness grades
• Automatic rotation direction change for optimum cleaning results
• Reduces the risk of damage to the cleaning shaft
• High resistance to dust and moisture

Installation

• Quick set-up at the site
• Connection to the mains supply
• Tool-free snap-in fitting of the cleaning shaft
• Selection of the desired speed and cleaning parameters via the display
• Flexible adaptation to different air duct sizes
• For air ducts with a diameter of 500 mm or more, the use of a centring trolley is recommended

Why is this SPARTA 24 PLC cleaning machine right for you?

The SPARTA 24 PLC is the ideal solution for professional cleaning work in ventilation and air duct systems. The intelligent PLC control system, automatic brush rotation and tool-free shaft replacement reduce the workload and speed up cleaning processes. At the same time, the lightweight design ensures easy transport and flexible use on construction sites as well as during maintenance operations.

Application scenarios

• Cleaning of ventilation systems
• Cleaning of air ducts with diameters of 100 to 800 mm
• Kitchen exhaust systems
• Industrial and commercial facilities
• Maintenance and servicing of air duct systems
• Cleaning of round and rectangular air ducts
• Professional duct cleaning in building management

All information is provided without guarantee. Technical specifications, illustrations and prices are subject to change and are not binding. Errors excepted.
