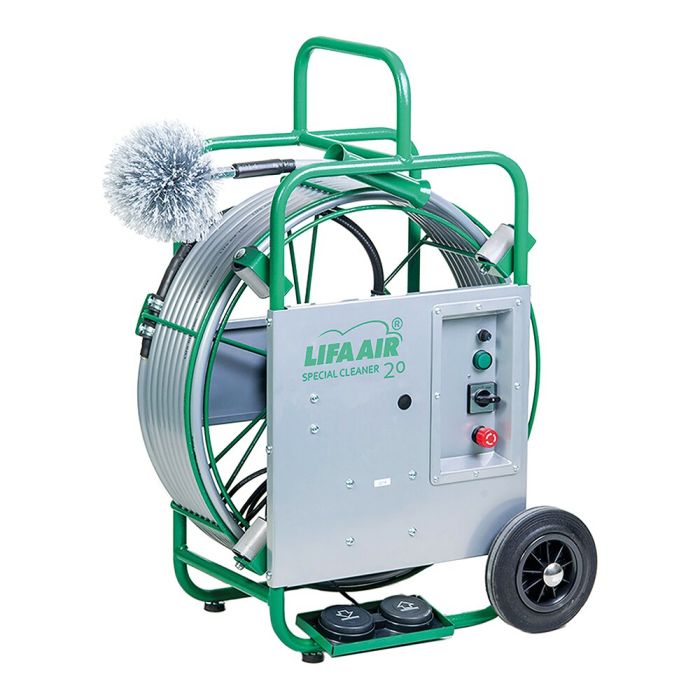

Special Cleaner 20

Compact cleaning machine for air ducts and controlled domestic ventilation systems

The Special Cleaner 20 has been specially developed for the professional cleaning of air ducts with diameters ranging from 100 to 400 mm. Thanks to its compact design, the machine is ideal for confined workspaces, winding air duct systems and hard-to-reach locations. The 20-metre-long cleaning shaft allows duct sections of up to 35 metres to be cleaned via a single access point. This makes cleaning work more efficient and reduces the amount of labour required.

The brush rotation can be conveniently switched between both directions of rotation using a foot control. This allows bends, junctions and changes of direction within the air duct system to be navigated easily and cleaned reliably. An integrated guidance system prevents the cleaning shaft from sagging whilst simultaneously reducing dirt build-up at the site of operation. This ensures clean working conditions and comfortable handling during daily use.

Technical Highlights

• 20 m long cleaning shaft
• Suitable for duct sizes from 100 to 400 mm
• Brush rotation speed 550 rpm
• Electric drive
• Rotation direction change via foot control
• Suitable for cleaning distances of up to 35 m
• M12 brush connection
• Specially developed for confined working spaces

Key features

• Compact design for hard-to-reach areas
• Long cleaning reach thanks to the 20 m shaft
• Easy navigation through bends and changes of direction
• High cleaning performance at 550 rpm
• Convenient control via foot pedal

Additional features

• Ideal for controlled domestic ventilation systems
• Prevents the cleaning shaft from sagging
• Clean operation thanks to a special guide system
• Easy to transport and ready for use
• Professional solution for regular maintenance operations

Assembly

• Fit the appropriate cleaning brush
• Connect the cleaning shaft to the machine
• Insert the brush into the air duct
• Adjust the direction of rotation using the foot pedal if required
• Carry out cleaning work in accordance with the duct geometry

Why is this Special Cleaner 20 right for you?

The Special Cleaner 20 is the ideal solution for specialist contractors who wish to clean air ducts in residential and commercial properties efficiently. The combination of a compact design, a long cleaning shaft and controllable rotation direction enables professional cleaning results, even in narrow and winding air duct systems. Particularly in controlled residential ventilation systems, the machine ensures thorough, cost-effective and time-saving cleaning.

Application scenarios

• Controlled residential ventilation systems (CRVS)
• Ventilation systems
• Air ducts from 100 to 400 mm
• Maintenance and servicing of air duct systems
• Residential buildings
• Commercial properties
• Professional duct cleaning

All information is provided without guarantee. Technical specifications, illustrations and prices are subject to change and are not binding. Errors excepted.
