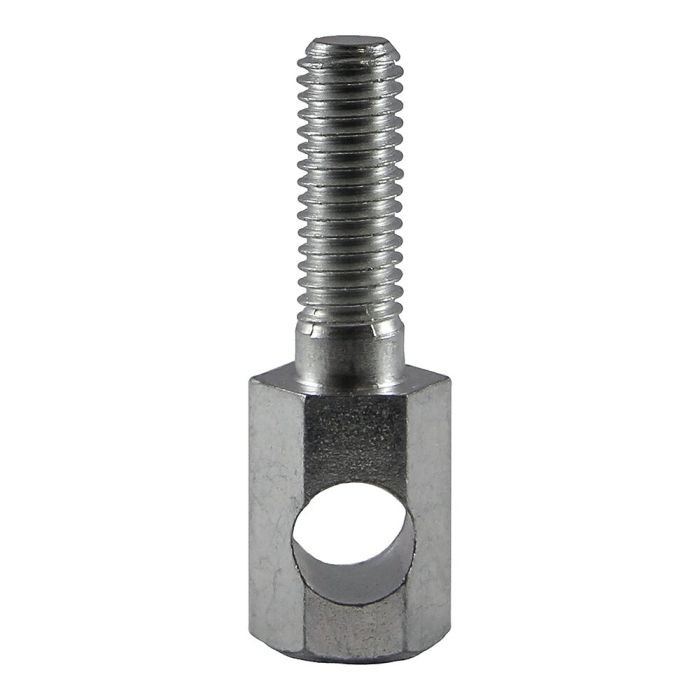

Suspension bolt - M10-11

Simple and cost-effective fixing of rectangular air duct systems

The M10-11 SUSPENSION BOLT has been specially developed for the installation of rectangular air ducts in the System 30. This component serves as a fixing element for direct installation using M10 threaded rods. It is fitted in place of a screw at the lower corner of the flange.

The direct connection to the flange corner provides a simple, stable and cost-effective fixing solution for air duct systems. The galvanized steel construction ensures reliable corrosion protection and a long service life in daily use.

The suspension bolt professionally secures rectangular air duct systems in ventilation and air conditioning systems. It enables quick and secure installation.

Technical Highlights

• M8 suspension bolt for System 30
• Suitable for rectangular air duct systems
• Fitted directly to the flange corner
• Made from galvanized steel
• Maximum load capacity 2 kN
• Designed for M10 threaded rods

Key Features

• Quick and easy installation
• Cost-effective fixing solution
• Direct fixing to the flange corner
• High stability with minimal installation effort
• Corrosion-protected design

Additional features

• Suitable for professional ventilation systems
• Reduces the effort required for duct installation
• Ensures safe load-bearing
• Robust design for daily use on construction sites
• Suitable for System 30 flange connections

Installation

• Fit the suspension bolt in place of the lower flange corner screw
• Connect the M10 threaded rod to the suspension bolt
• Align and secure the duct
• Check that the connection is secure
• Observe the load-bearing capacity appropriate to the application

Why is this suspension bolt right for you?

The M10-11 suspension bolt is the ideal solution for the cost-effective and secure fixing of rectangular air ducts. Direct mounting onto the flange corner saves additional effort. The galv. finish and load capacity of up to 2 kN guarantee a durable and stable fixing.

Application scenarios

• Rectangular air ducts
• System 30
• Ventilation systems
• Air conditioning systems
• Industrial and commercial installations
• Ceiling suspensions with M10 threaded rods
• Air duct installation
