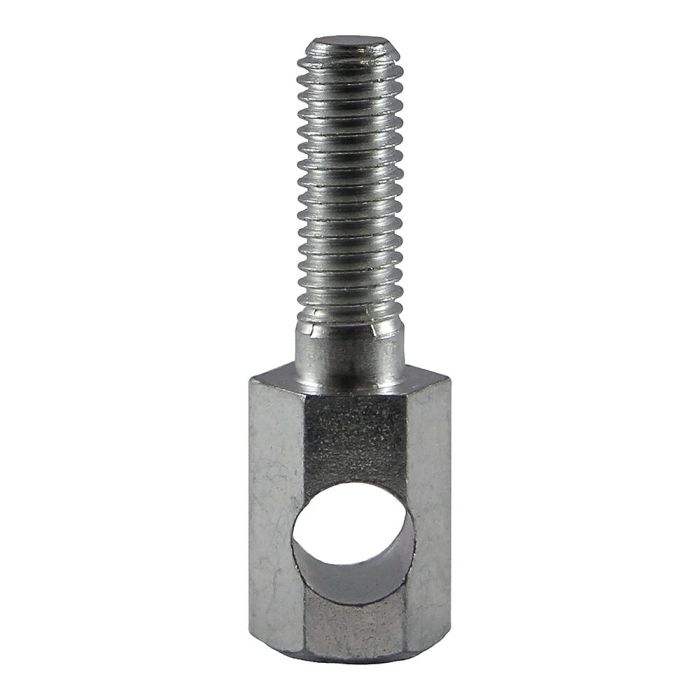

Suspension bolt - M8 - 9

Simple and cost-effective fixing of rectangular air duct systems

The M8-9 SUSPENSION BOLT has been specially developed for the installation of rectangular air ducts in System 20. It serves as a fixing element for direct installation using M8 threaded rods and is fitted in place of a screw at the lower flange corner.

The direct connection to the flange corner provides a simple, stable and cost-effective fixing solution for air duct systems. The galvanized steel construction ensures reliable corrosion protection and a long service life in daily use.

The suspension bolt is ideal for the professional fixing of rectangular air duct systems in ventilation and air conditioning systems and enables quick and secure installation.

Technical highlights

• M8 suspension bolt for System 20
• Suitable for rectangular air duct systems
• Installation directly onto the flange corner
• Made from galvanized steel
• Maximum load capacity 1.5 kN
• Designed for M8 threaded rods

Key features

• Quick and easy installation
• Cost-effective fixing solution
• Direct fixing to the flange corner
• High stability with minimal installation effort
• Corrosion-resistant design

Additional features

• Suitable for professional ventilation systems
• Reduces the effort required for duct installation
• Ensures safe load-bearing
• Robust design for daily use on construction sites
• Suitable for System 20 flange connections

Installation

• Insert the suspension bolt in place of the lower flange corner screw
• Connect the M8 threaded rod to the suspension bolt
• Align and secure the duct
• Check that the connection is secure
• Observe the load-bearing capacity appropriate to the application

Why is this suspension bolt right for you?

The M8-9 suspension bolt is the ideal solution for the cost-effective and secure fixing of rectangular air ducts. Direct mounting onto the flange corner eliminates the need for additional installation work, whilst the galv. finish and load-bearing capacity of up to 1.5 kN ensure a durable and stable fix.

Application scenarios

• Rectangular air ducts
• System 20
• Ventilation systems
• Air conditioning systems
• Industrial and commercial installations
• Ceiling suspensions with M8 threaded rods
• Air duct installation

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
