Insect Screen

Insect Screens for Weather Protection Grids – Reliable Protection While Allowing Air to Flow Freely through the Air Diffuser

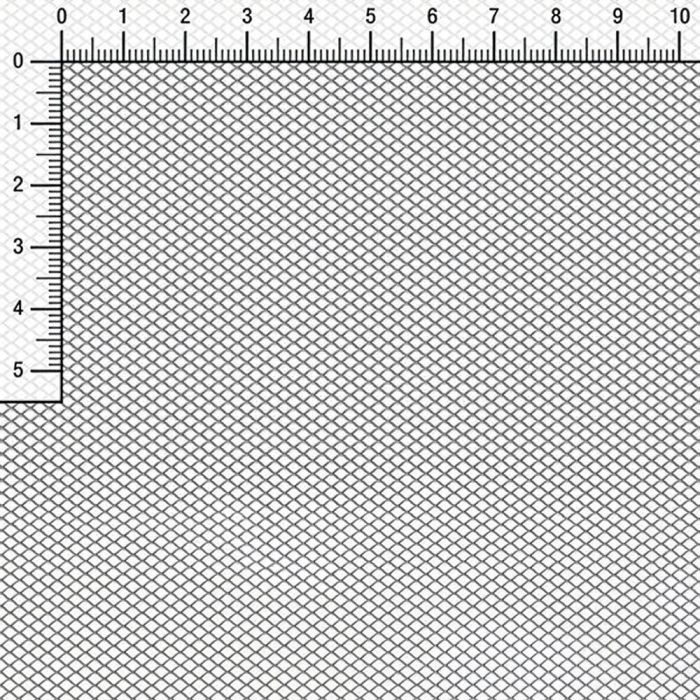

A high-quality insect screen reliably protects ventilation systems against the intrusion of insects, leaves, and coarse debris. At the same time, it does not unnecessarily impede the necessary airflow. The fine-mesh expanded metal screen is specifically designed for use as a weather protection screen with insect protection. It combines high stability with a good clear cross-sectional area. The square-mesh structure ensures a uniform opening geometry. It also offers a robust design for long-term use in ventilation and building services systems. The technical properties are based on a calendered expanded metal mesh made of galvanized steel. It features a mesh geometry of 3.0 x 2.2 mm and an open area of approximately 55%.

Technical Highlights

• Fine-mesh expanded metal for use as ventilation insect screens
• Width: 1,250 mm
• Length: 25 m per roll
• Dimensions: Q3 x 2.2 - 0.3 x 0.4
• Calendered finish for a uniform surface
• Galvanized steel for high corrosion resistance
• Square mesh geometry 3.0 x 2.2 mm
• Open area approx. 55% for good air diffuser (air opening) performance
• Low weight per unit area of approx. 0.85 kg/m²
• High mechanical stability with minimal material usage
• Suitable for weather protection grilles, fresh air and exhaust air openings

Key Features

• Prevents insects from entering ventilation systems
• Reduces contamination in ducts and system components
• Helps lower maintenance and cleaning costs
• High airflow despite its protective function
• Robust construction for long-lasting operation
• Cost-effective solution for new and existing systems

Additional features at a glance

• Durable solution with low maintenance requirements and high cost-effectiveness
• Versatile and compatible with numerous weather protection grilles
• Less contamination on filters, heat exchangers, and air ducts
• Increased operational reliability of the ventilation system
• Reduces the risk of foreign objects in the air duct system

Installation

• Easy integration into existing weather protection grilles
• Lightweight design facilitates installation
• Suitable for custom cuts and project-specific dimensions
• Quick installation in new construction and renovation projects
• Robust design minimizes deformation during installation

Why is this protective screen right for you?

You’re looking for a solution that promotes sustainability to protect outdoor air inlets. With this insect screen, you get a practical combination of protection, an air diffuser (air opening), and stability. The screen protects sensitive ventilation components from insects and dirt ingress, reduces maintenance requirements, and contributes to trouble-free system operation. This makes the product the ideal choice for air duct manufacturers, building services contractors, system integrators, and operators of professional ventilation systems.

Application Scenarios

• Weather protection screens on exterior facades
• Supply and exhaust air systems
• Ventilation units and air-handling centers
• Industrial and commercial buildings
• Equipment rooms and utility areas
• Renovation and modernization projects
• Air duct and system construction

All information is provided without guarantee. Technical specifications, illustrations, and prices are subject to change and are non-binding. Errors excepted.
