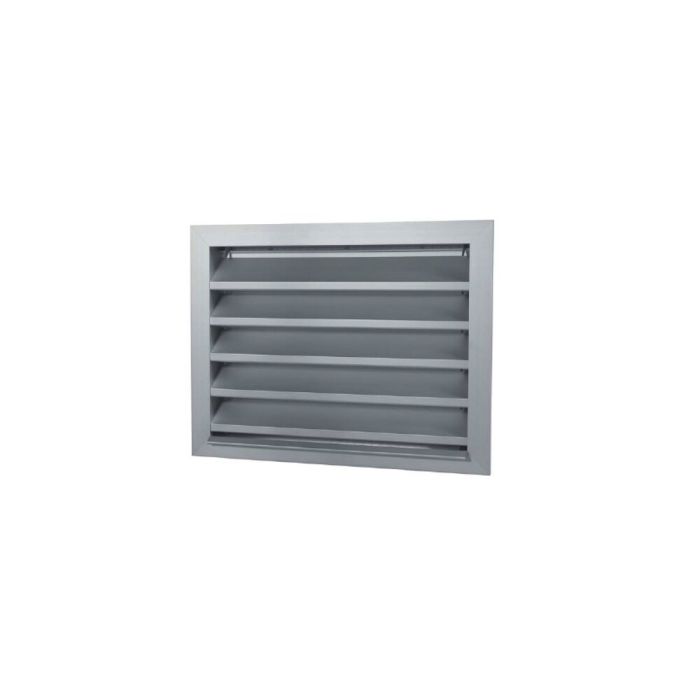

Weather protection grid – with screws – galv.

Steel weather protection grilles for particularly simple and cost-effective in-house production

This kit, made from galvanized steel and supplied with screws, has been specially developed for building services companies wishing to manufacture weather protection grilles themselves in a flexible and cost-effective manner, without the need for complex fixing systems. The key advantage of this system lies in the direct fixing of the slats using screws or nails. This reduces installation effort, whilst at the same time allowing custom grille sizes to be manufactured quickly and cost-effectively. The design is based on galv. steel components with a louvre spacing of 68 mm.

In air duct construction, project-specific non-standard dimensions, last-minute design changes or varying façade openings often lead to delays in procurement. With this steel weather protection grille, you remain flexible and can manufacture suitable solutions directly in your own workshop or production facility. The fixed slats protect fresh air and exhaust air openings from the elements. In combination with a bird protection grille fitted behind it, the ingress of leaves, small animals and debris can also be reduced. This contributes to trouble-free system operation.

Technical highlights

• Slats secured with screws or nails
• Slats spaced 68 mm apart
• Slats made from galvanised steel
• Air duct profile made from galvanised steel with raised studs
• Corner brackets made from galvanised steel
• Suitable for custom grille dimensions
• Can be extended with bird protection or spot-welded mesh
• Robust construction for professional ventilation system installation

Key features

• Easy installation without additional fasteners
• Cost-effective production of bespoke weather protection grilles
• Robust and durable design made from galvanized steel
• Flexible adaptation to project-specific installation scenarios
• Reduced lead times for custom sizes
• Ideal for applications in the field of weather protection grilles for ventilation

Additional features at a glance

• Cost-effective stock management thanks to standardised components
• Easy replacement of individual components during maintenance or modification
• Attractive solution for customers with bespoke manufacturing requirements
• Rapid production of precisely fitted weather protection grilles
• Reliable protection of supply and exhaust air openings

Installation

• Cut the profiles to the required dimensions
• Assemble the frame using corner brackets
• Position the slats at the specified spacing
• Fix the slats directly using screws or nails
• Install bird protection or spot-welded grilles behind the main grille if required
• Suitable for efficient production processes in workshops and manufacturing

Why is this weather protection grille right for you?

This weather protection grille is the ideal solution for building services engineering companies that rely on a simple, tried-and-tested and cost-effective fixing method. The screw-fastening of the slats enables rapid fabrication of custom sizes. The galv. steel construction ensures stability and a long service life. This makes the DIY kit suitable for professional applications in air duct construction and building services engineering.

Application scenarios

• Outdoor air inlets on ventilation systems
• Exhaust air outlets in commercial and industrial buildings
• Facade connections for air duct systems
• Custom dimensions in air duct construction
• New-build and refurbishment projects
• Maintenance and replacement purchases
• Custom manufacturing in workshops and production facilities

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
