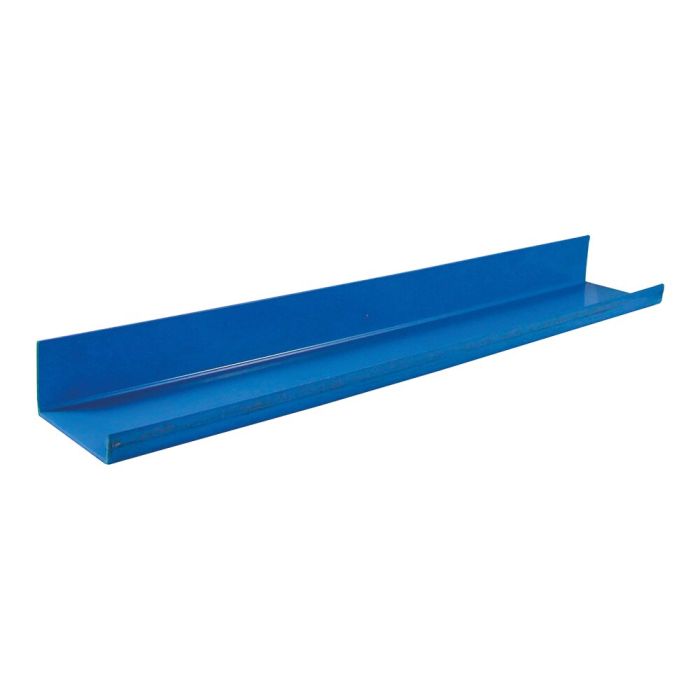

MEZ-ISO-KLEMM 50
MEZ-ISO-KLEMM 50 – PVC profile for thick insulation layers in air duct construction
The MEZ-ISO-KLEMM 50 is a robust PVC profile designed to securely hold and fix insulation with thick insulation layers. The air duct profile functionally connects components and complements the ISO-FLANGE Systems 20 and 30 perfectly. It enables clean and consistent installation during air duct production.
In practice, large insulation thicknesses place increased demands on the installation process. This often results in an inaccurate fit or additional installation effort. The profile is designed precisely for these situations: it ensures a secure clamp and facilitates the integration of the insulation without the need for time-consuming adjustments.
Technical highlights
- PVC profile (rigid PVC) for large insulation thicknesses in Systems 20 and 30
- Melting range up to +200 °C for reliable processing
- Tensile strength of 40–60 N/cm for heavy-duty applications
- Continuous operating temperature from +65 °C to +90 °C
- High dielectric strength for additional safety
- External dimension of 50 mm to accommodate thick insulation materials
Key features
- Secure fixing even with thick insulation
- Consistent and clean installation
- Reduced installation effort
- Reliable material properties in use
- Resistant to moisture and environmental influences
Additional features
- Complements the range for large-dimensioned insulation
- Less rework thanks to a secure fit
- Supports a uniform and lasting insulation effect
Installation
- Easy integration into ISO-FLANGE Systems 20 and 30
- Quick insertion and securing of the insulation
- Clean installation without additional tools
- Suitable for mass production and on-site assembly
Why is this profile right for you?
The MEZ-ISO-KLEMM 50 is the ideal solution for applications requiring high insulation thicknesses. It enables secure fixing, reduces installation effort and ensures stable, reproducible results in air duct manufacturing.
Application scenarios
- Air duct production with high insulation thicknesses
- ISO-FLANGE Systems 20 and 30
- Ventilation and air-conditioning system construction
- Industrial and plant engineering
- Maintenance and retrofitting
All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
| Part group | 100410 |
|---|---|
| Material | PVC/rigid |
| Clearance | 20 mm |
| External dimension | 50 mm |
| Color | RAL 5012 |
| Packaging unit | 60 m |
