MEZ-ISO-FLANGE 20

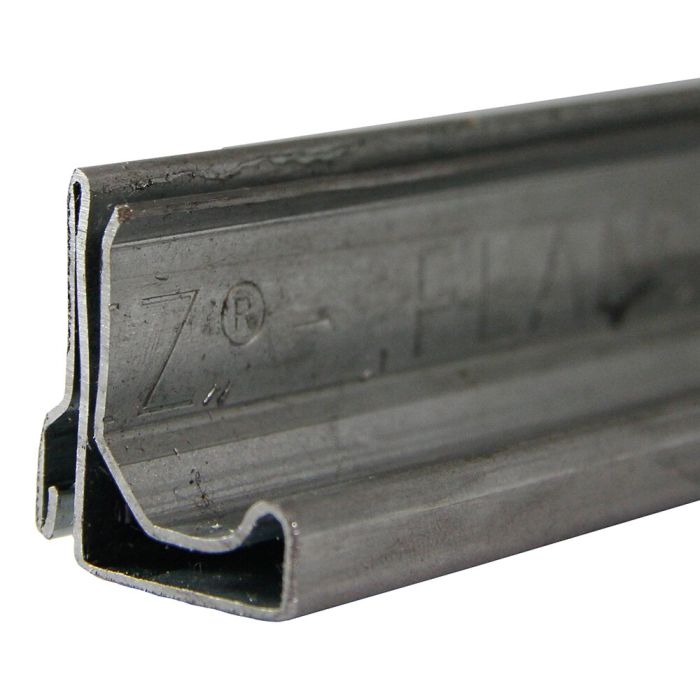

MEZ-ISO-FLANGE 20 - galv. – Special FLANGE air duct profile for insulated air ducts without thermal bridges

The MEZ-ISO-FLANGE 20 - galv. is a specially developed FLANGE air duct profile for air ducts with internal insulation. This component is a special profile. It separates the inner wall from the outer wall of the air duct. This prevents thermal bridges from forming. The profile stops heat from escaping to the outside. This saves energy and protects the equipment. That is why these systems have a particularly long service life.

In practice, thermal bridges often lead to energy losses, condensation and increased maintenance requirements. This is precisely where this air duct profile comes into its own: the combination of a special profile geometry and factory-injected MEZ-Bluemastic-GEL creates a permanently airtight and energy-optimised solution.

Technical highlights

• Special profile for air ducts with internal insulation
• Galvanized steel for reliable corrosion protection
• Factory-injected MEZ-Bluemastic-GEL sealant
• Design to prevent thermal bridges
• Suitable for energy-efficient air distribution systems
• Optional PVC clamping strip for sound insulation
• Precise flange geometry for secure connections

Key features

• Effectively prevents thermal bridges in the air duct system
• Reduces energy losses and improves overall system efficiency
• High airtightness thanks to integrated sealing solution
• Minimises the risk of condensation
• Improved acoustic properties when used optionally

Additional features

• Special system solution reduces additional components and operating costs
• Reliable implementation of insulated air duct systems
• Less maintenance required due to reduced condensation and leakage issues
• Consistent energy efficiency through reduced heat loss
• Reproducible results in sensitive applications

Installation

• Easy integration into insulated air duct systems
• No additional Sealing required
• Secure connection thanks to optimised profile geometry
• Quick installation with no extra effort
• Optional integration of sound insulation solutions

Why is this MEZ-ISO-FLANGE 20 - galv. right for you

The MEZ-ISO-FLANGE 20 - galv. offers the optimal solution for insulated air ducts. This specialised profile specifically prevents heat loss whilst ensuring maximum airtightness. It combines energy efficiency, system integration and ease of installation in a clearly specialised profile.

Application scenarios

• Air ducts with internal insulation
• Energy-efficient ventilation systems
• Building services systems with a focus on thermal insulation
• HVAC systems with condensation prevention
• Industrial and commercial ventilation
• Projects with increased energy efficiency requirements
