MEZ-CORNER-System 20

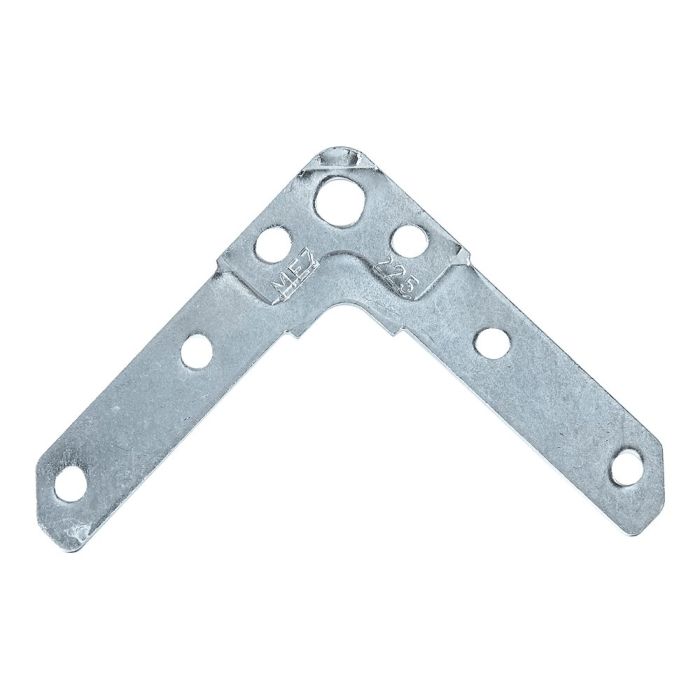

MEZ-CORNER 20 long, round hole – galv. version: Versatile corner connector for Standard & ISO flange systems

The MEZ-CORNER 20 – long, round hole – galv. is a versatile corner for the STANDARD & ISO FLANGE System 20 and proves its worth as a reliable air duct profile connector for the production of air duct systems. Thanks to its long-leg design, the corner is particularly suitable for sturdy frame constructions, whilst its top-mounting design ensures easy installation.

In practice, clean corner joints and secure Sealing are crucial in flange systems. Imprecise fits or time-consuming rework cost time and resources. This design offers a clear solution: the corner is fitted directly onto the duct wall and seals reliably on the inside – ensuring consistent quality and reproducible results.

Technical highlights

• Long-leg design for stable corner areas in frame construction
• Material thickness of 3.0 mm for dimensionally stable and resilient connections
• Round hole (9 mm) for quick and easy screw fastening
• Offset dimension of 30 mm for system-compatible integration
• Compatible with STANDARD and ISO-FLANGE System 20
• Installation by placing onto the duct wall with internal Sealing

Key features

• Universally applicable in two flange systems
• Clean and stable corner joints
• Reduced installation effort thanks to snap-on mounting
• Consistent joint quality in series production
• Durable thanks to galv. surface

Additional features

• One component for multiple systems reduces the variety of variants
• Less rework thanks to defined Sealing
• Supports reliable airflow

Installation

• Simple placement on the duct wall
• Quick screw connection via round hole
• Clean fit thanks to precise positioning
• Suitable for workshop and on-site installation

Why is this corner bracket suitable for you

The MEZ-CORNER 20 – long, round hole – galv. is the ideal solution for stable yet flexible corner joints in the STANDARD and ISO-FLANGE System 20. It simplifies installation, reduces the number of variants in procurement and ensures consistently reliable results in air duct production.

Application scenarios

• Production of air ducts in the STANDARD and ISO-FLANGE System 20
• Framework construction in ventilation technology
• Ventilation and air conditioning system construction
• Industrial and plant engineering
• Maintenance and extension of existing air duct systems

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
