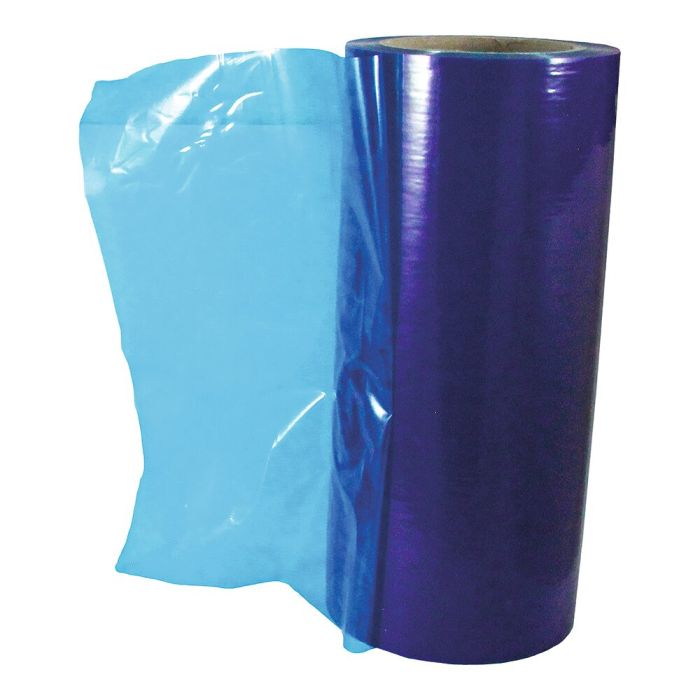

MEZ-DUCT-WRAP 500

Self-adhesive duct sealing film for clean temporary closures during construction

The MEZ-DUCT-WRAP 500 is a robust, self-adhesive protective film designed for the professional temporary sealing of air ducts and pipes during construction. Its key advantage: reliable protection combined with residue-free removal – ideal for clean and efficient ventilation installation processes.

Exposed ducts during transport and the construction phase often lead to contamination that is difficult to remove or compromises the quality of the system. This ventilation duct protective film prevents exactly that: it securely seals components, protects against external influences and ensures that air duct systems remain clean right up until commissioning.

With 100 metres per roll and a width of 500 mm, the duct sealing film is optimally designed for cost-effective use on construction sites.

Technical highlights

• Self-adhesive polyethylene-based film
• Material thickness 40 µ
• Width: 500 mm
• Roll length: 100 metres
• Removable without leaving any residue
• Acrylate adhesive (water-based)
• Adhesive strength on steel: 1.4 N/cm ± 0.2 N/cm
• Suitable for metal and painted surfaces
• Application temperature: +8 °C to approx. +40 °C
• Fire protection class B3 in accordance with DIN 4102
• 100% recyclable
• Suitable for use in accordance with VDI 6022
• For optimum adhesion, the substrate must be free from grease, oil, dust, moisture and other contaminants

Key features

• Secure temporary sealing of air ducts or pipes
• Effective protection against dust, moisture and damage
• No adhesive residue – no additional cleaning required
• High material strength for reliable hold
• Clean system right through to handover

Additional features

• Ensures continuous protection from the production site to the construction site
• Prevents dirt particles from entering the duct system
• Supports compliance with hygiene requirements in accordance with VDI 6022
• Preserves the quality and functionality of ventilation components
• Ensures stable operations without unnecessary interruptions or rework

Installation

• Quick and easy application without special tools
• Can be applied directly to clean, dry surfaces
• Can be cut to size flexibly to suit different duct dimensions
• Secure adhesion during the construction phase
• Removal leaves no residue and causes no damage

Why is the MEZ-DUCT-WRAP 500 right for you

The MEZ-DUCT-WRAP 500 is the ideal solution if you wish to reliably seal air ducts or pipes during the construction process. It saves you both time and money. It combines durability, hygienic protection and ease of use in a cost-effective package – perfect for professional requirements in ventilation installation.



Application scenarios

• Temporary sealing of air ducts during construction
• Sealing of pipes and fittings
• Protection during transport and temporary storage
• Covering open duct ends on construction sites
• Temporary protection against dust and moisture

All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are not binding. Errors excepted.
