MEZ-CORNER-System 20

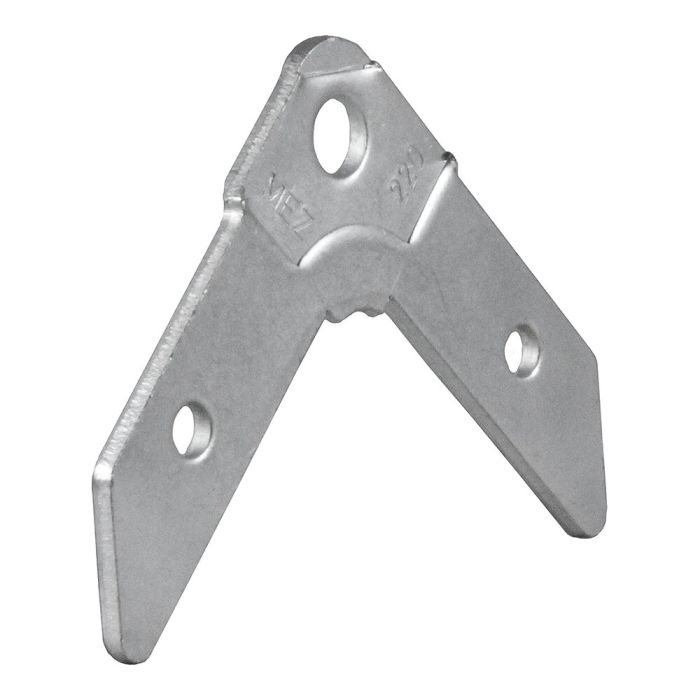

MEZ-CORNER 20 – Round hole – galv.– Compact corner joint for standard flange systems
The MEZ-CORNER 20 – Round hole – galv. is a compact air duct profile connector for the STANDARD & ISO FLANGE System 20 and has been specially developed for fitting onto the duct wall. The corner enables a space-saving yet stable corner connection – ideal for applications where a small clearance dimension is required.
In practice, standard flange systems often call for compact and quick-to-install solutions. Corner brackets that are too large make integration difficult or result in unnecessary material overhang. With its short clearance dimension of 10 mm, this corner bracket offers a neat solution for precise corner joints in confined spaces – without compromising on stability or workability.
Technical Highlights
- Compact design with 75 mm side length for standard applications
- Material thickness of 3.0 mm ensures stable and dimensionally stable joints
- Round hole (9 mm) for quick and easy screw fastening
- 10 mm projection for space-saving corner formation
- Designed for mounting the duct wall in a flange system
Key features
- Ideal for compact flange connections
- Clean, reproducible corner joints
- Easy integration into standard and ISO flange systems
- Reduced installation effort
- Galv. surface for long-lasting use
Additional features
- Suitable system component for STANDARD-FLANGE applications
- Less rework in compact installation spaces
- Supports stable and reliable airflow
Installation
- Fitting the duct wall allows for quick installation
- Simple screw connection via round hole
- Clean fit with minimal space requirements
- Suitable for workshop and on-site assembly
Why is this corner bracket right for you?
The MEZ-CORNER 20 – Round Hole – galv. is the ideal solution for compact and efficient corner joints in the STANDARD and ISO-FLANGE System 20. It ensures a clean fit with minimal clearance and supports cost-effective manufacturing processes.
Application scenarios
- Air duct production in the STANDARD-FLANGE System 20
- ISO flange systems in ventilation engineering
- Compact frame constructions
- Ventilation and air conditioning system construction
- Maintenance and retrofitting of existing systems
All information is provided without guarantee. Technical data, illustrations and prices are subject to change and are non-binding. Errors excepted.
| Part group | 110201 |
|---|---|
| Material | Galvanized steel |
| Screw hole | 9 mm |
| Clearance | 10 mm |
| Versioin | With a short pull-out dimension and a round hole |
| Pallet | 15.000 St. |
| Packaging unit | 500 St. |
