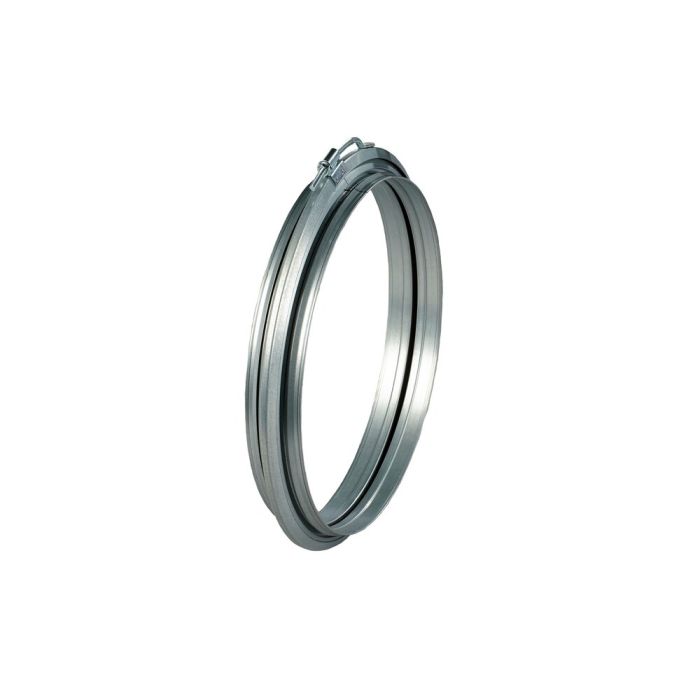

Round flange BF 28
Nominal size 280 mm
Article number
163/0280
Round flange BF 28 is available to buy in increments of 1
The MEZ-CIRCULAR FLANGE BF 28 has two circumferential flared edges which cling to the duct and ensure a lot of flexibility. The MEZ-CIRCULAR FLANGE BF 28 is made of galvanised steel and is for ducts with a nominal size of 280 mm. An advantage of the MEZ-CIRCULAR FLANGE BF 28 is that it reinforces lighter gauge ductwork. The circular flange is fastened by notches or in some cases self drilling screws or blind rivets. The MEZ-CIRCULAR FLANGE BF 28 is suited for Stiffening Ribs, Spirally Wound and Straight Seams and is connected with the MEZ-JOINING CLIP SR.Technical characteristics
Two sealing lips providing more flexibility
Fastening with notches
Reinforce lighter gauge ductwork
Two sealing lips providing more flexibility
Fastening with notches
Reinforce lighter gauge ductwork
| Teilegruppe | 170102 |
|---|
